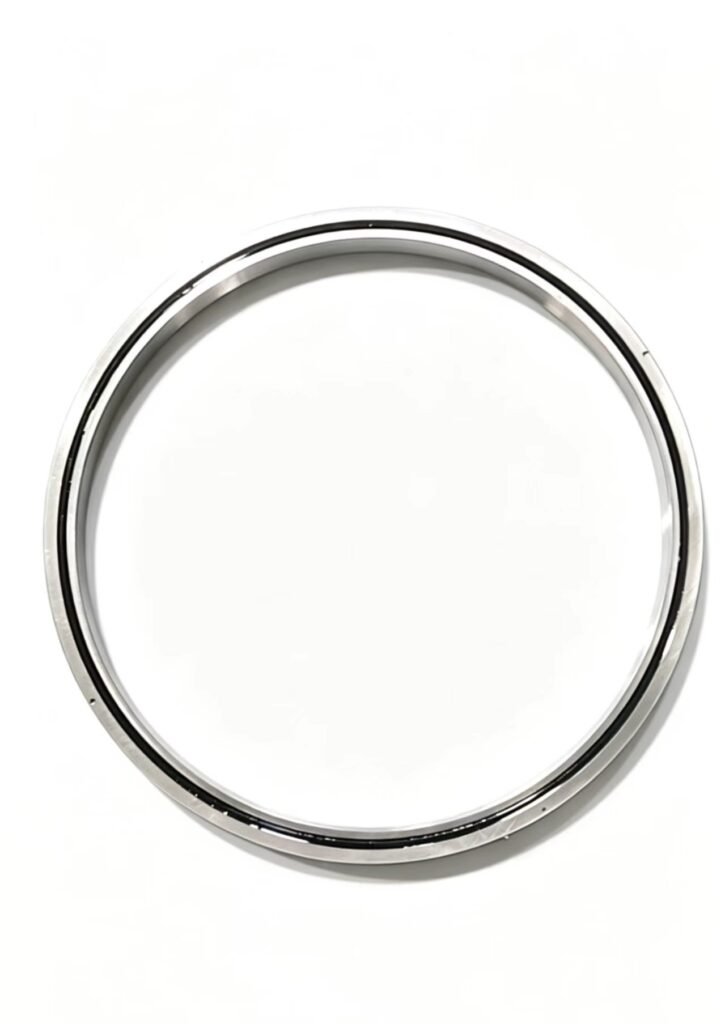

RA Series of crossed roller bearing is the ultrathin crossed roller bearing with the intergral inner ring and separated outer ring.Its structure is the same as that of RB series..It is very suitable to the area where accuracy of inner ring is very high.

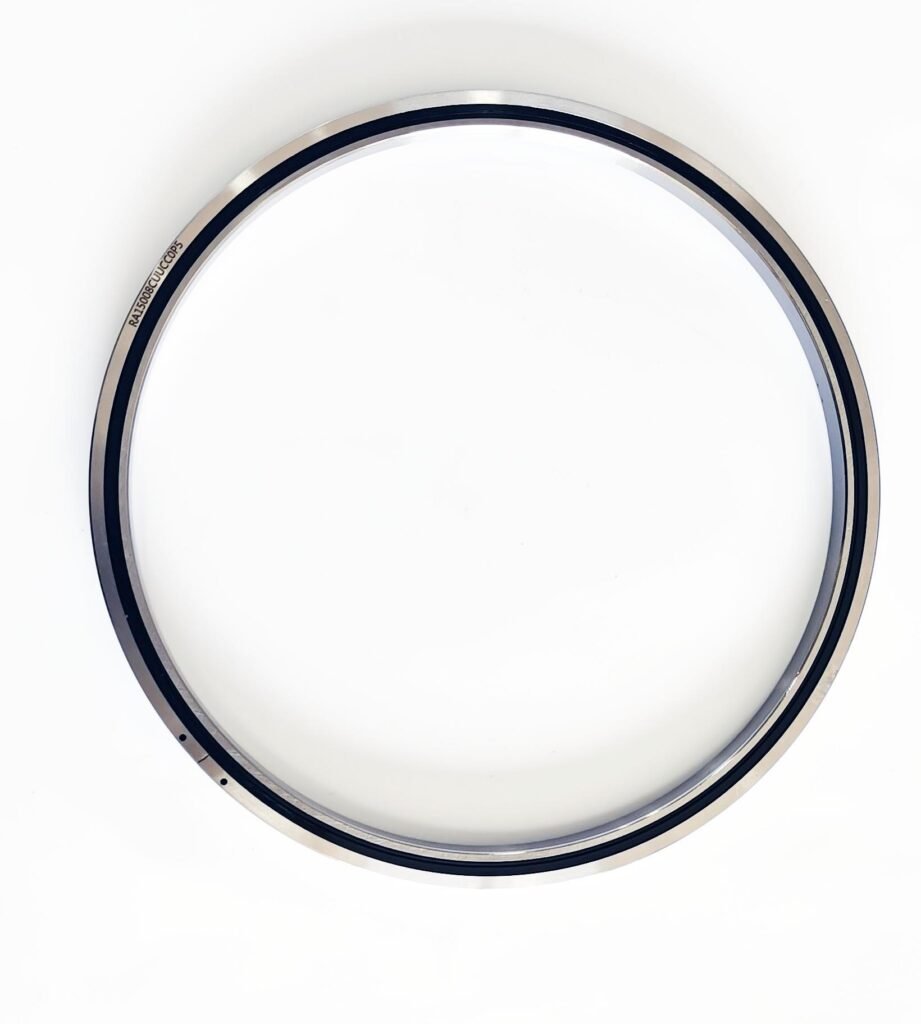

The dimensions of the RA 15008UUCC0P2

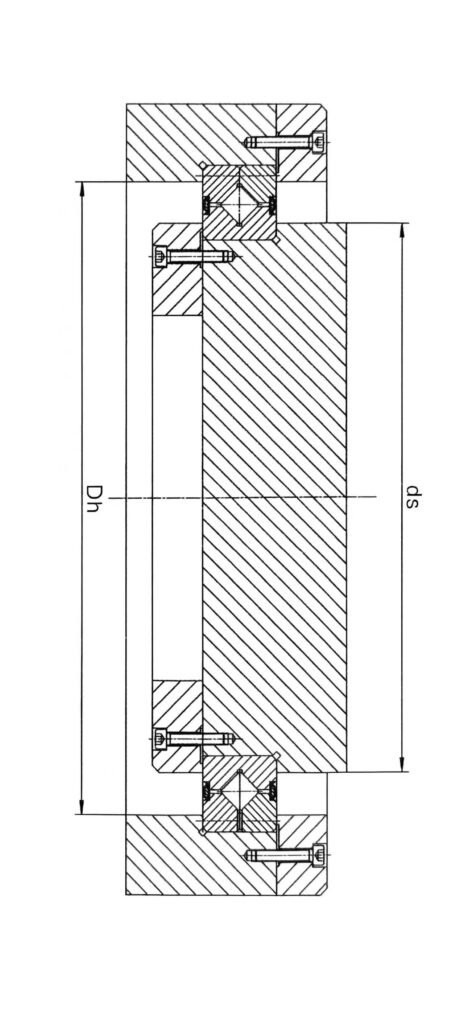

| Bearing type | Inner diameter | Outer diameter | Roller pitch diameter | Height | Chamfer | Cr | Cor | Weight | ds | Dh |
| RA15008 | 150mm | 166mm | 157mm | 8mm | 0.5 | 8.82kN | 20.6kN | 0.2 | 153.5 | 160.5 |
Applications
Robot，semiconductor，High Precision industrial area
