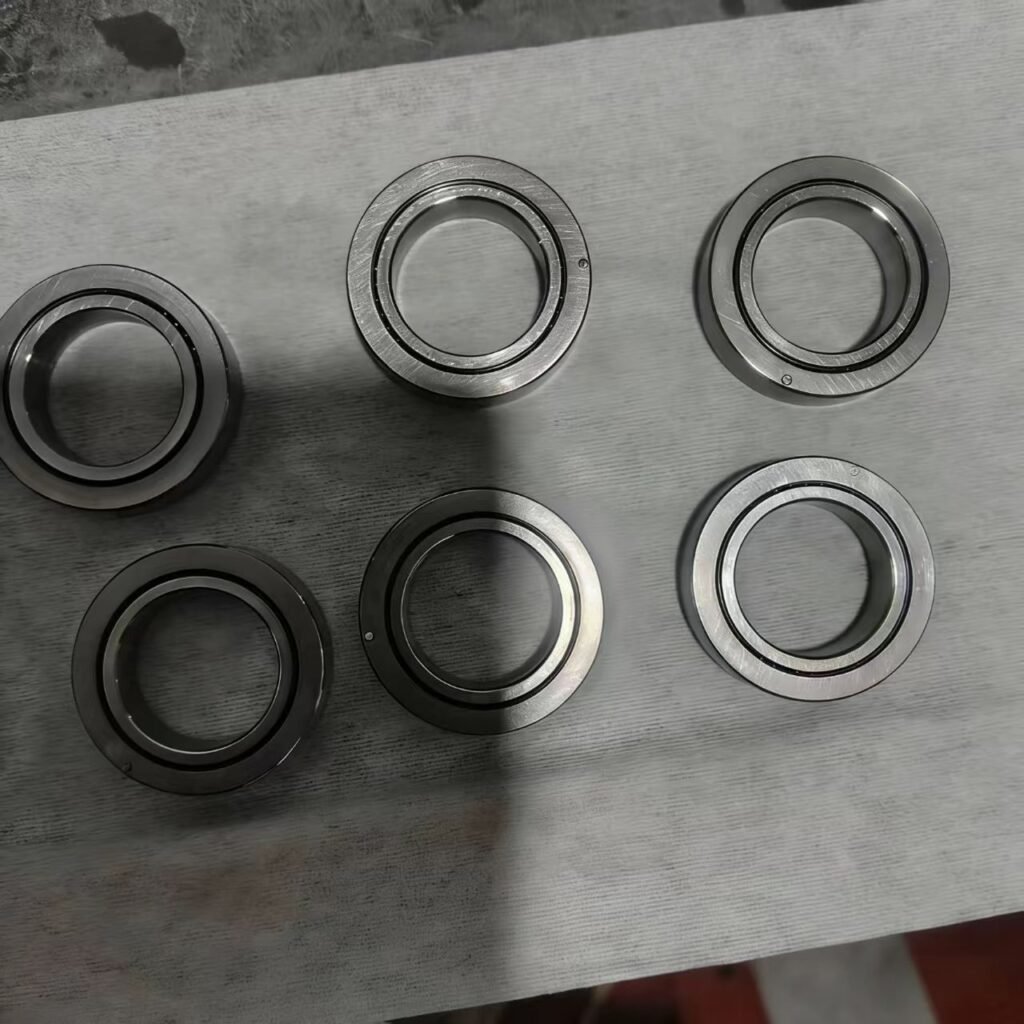

CRBH crossed roller bearing with integral inner ring and outer ring.As extrathin crossed roller bearing,there is no mounting holes both in inner ring and outer ring. It needs flange and housing to fix it when it is mounted.
Material of CRBH208K： 42CrMo
dimensions of CRBH208K
D(outer ring diameter):36mm;
d(inner ring dimameter):20mm;
B(height):8mm;
Chamfer(Rmin):0.3
Cr:2.91KN
Cor:2.43KN
Weight:0.04kg
Application:robot arm and other miniature instruments.
