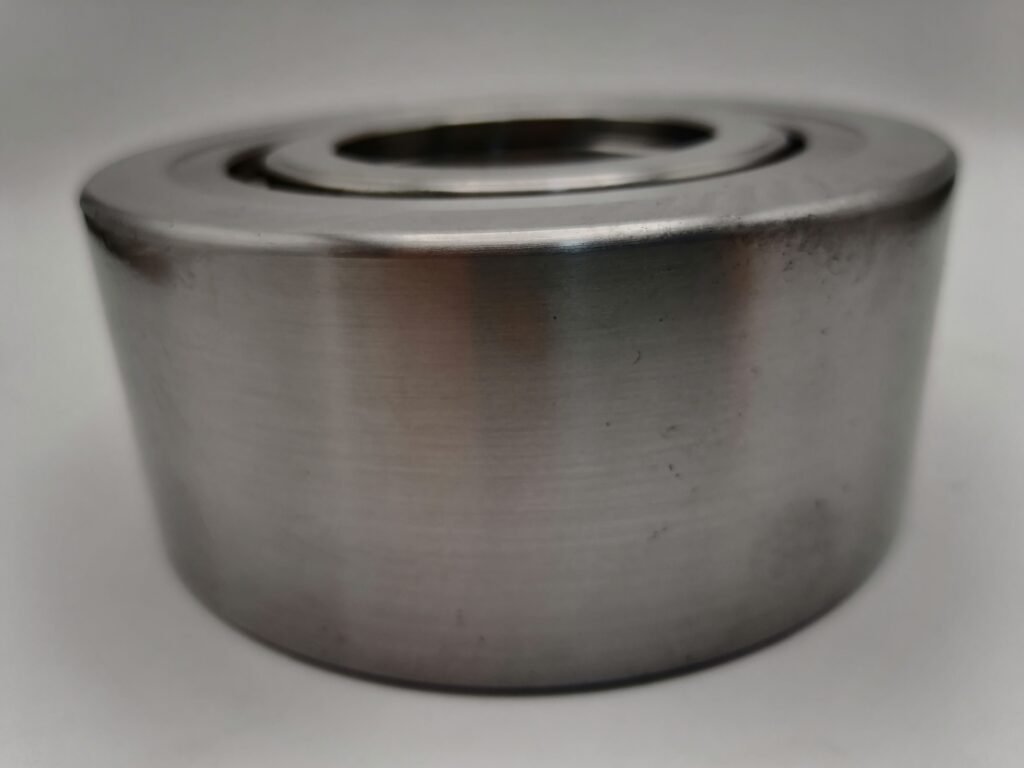

Back-up roller bearing for rolling mill

Based on many years of experience and recorded success in the area of multi-roll mills,Jiayu  supplies high-durability,high-precision cylindrical roller bearings for backing shafts(backing bearing).

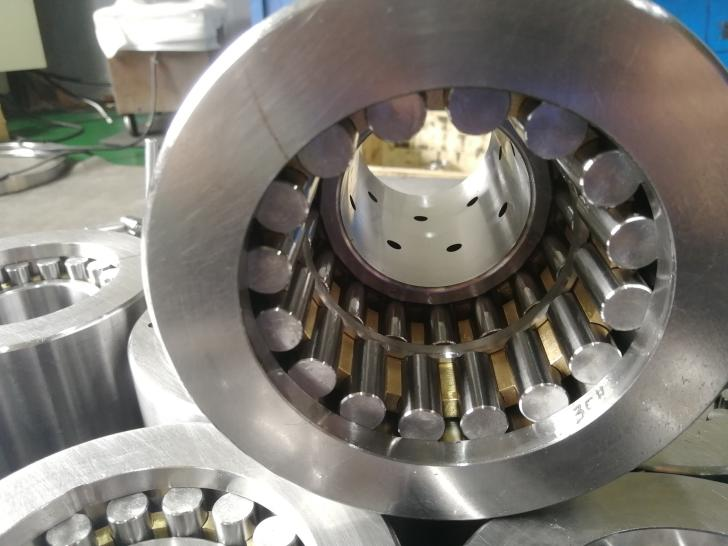

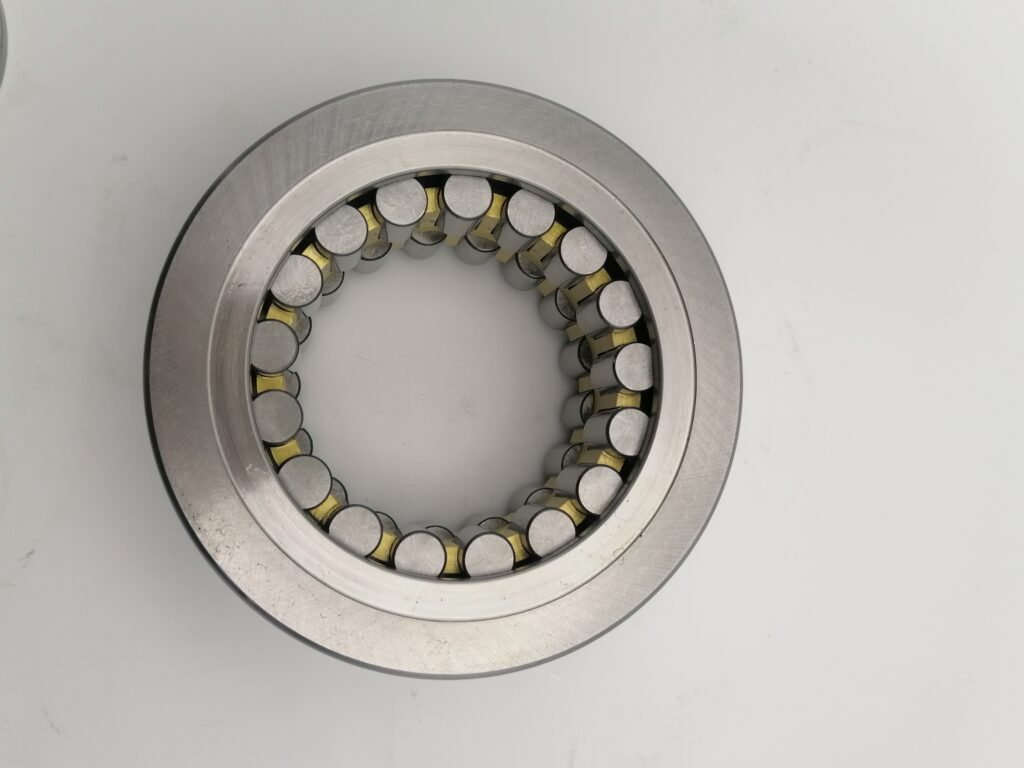

backing bearings are available in many designs and variants. The main assortment is based on double or three-row cylindrical roller bearings. Single row needle roller bearing and double row tapered roller bearing designs are also available.

Our backingup bearing are mainly used to roll Silicon plate or sthin-section steel plate. These bearings have a particularly thick-walled outer ring and can be mounted on stationary support shafts to form backup or straightening rolls. Our backing bearings are used on the eight support shafts of a 20-roll mill.

The height difference can be reached in 0.005mm,even,0.0025mm.And the price is very competitive.

Our products

Maintenance and reworking

Backing bearings in the middle of the roll are subjected to heavier loads than those at the ends of the roll. As the middle bearings wear more than the others, they should be replaced more often.

After reworking, the outer rings must be cleaned, remeasured, marked and reassembled with the appropriate roller complements or roller and cage assemblies and inner rings to form complete backing bearings. It is also necessary to regrade into cross-sectional height groups.
