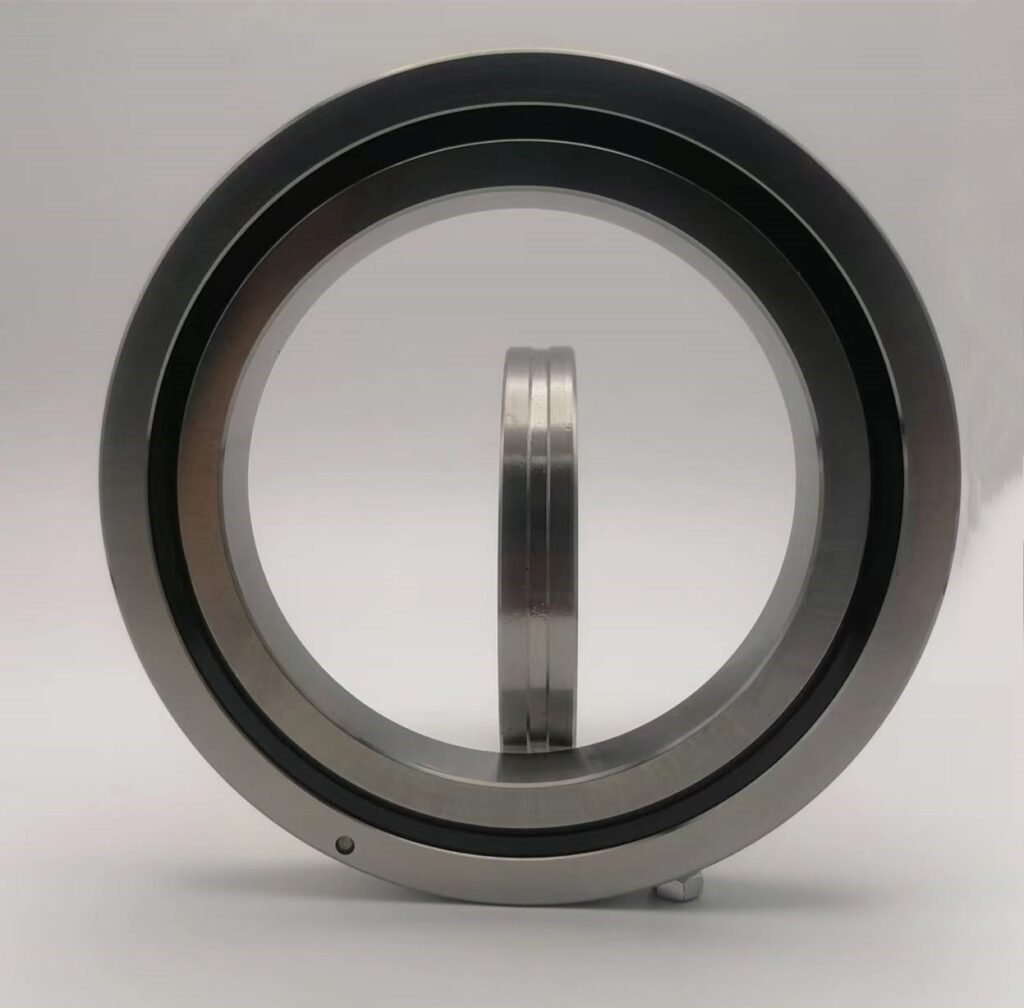

CRBS Crossed Roller Bearings are a type of high-precision rotary bearing designed to handle combined loads (radial, axial, and moment loads) simultaneously with exceptional rigidity and accuracy. The unique 90° crossed roller arrangement ensures optimized load distribution, making them ideal for applications requiring high rotational precision, compact design, and low deflection.
Key Features:✔ High Load Capacity – Supports radial, axial, and moment loads in a single bearing.
✔ Compact & Space-Saving – Integrates two bearing functions into one unit, reducing assembly size.
✔ Smooth Rotation with Low Friction

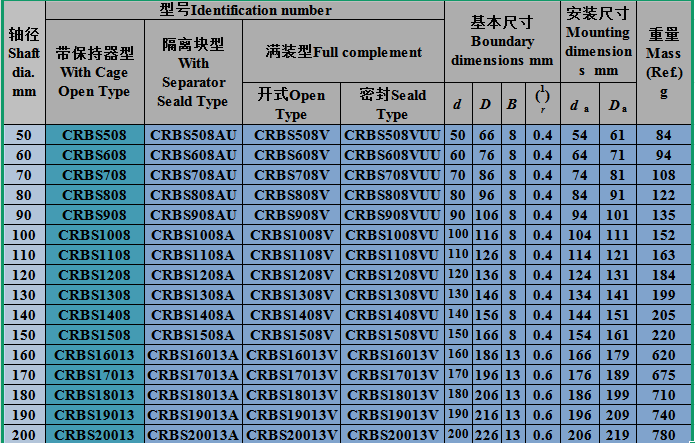

Table CRBS dimensions and mounting dimensions
| 轴径Shaft dia. mm | 型号Identification number | 基本尺寸Boundary dimensions mm | 安装尺寸Mounting dimensions mm | 重量Mass (Ref.) g | |||||||
| 带保持器型With Cage Open Type | 隔离块型With Separator Seald Type | 满装型Full complement | |||||||||
| 开式Open Type | 密封Seald Type | d | D | B | (1) r min | d a | Da | ||||
| 50 | CRBS508 | CRBS508AUU | CRBS508V | CRBS508VUU | 50 | 66 | 8 | 0.4 | 54 | 61 | 84 |
| 60 | CRBS608 | CRBS608AUU | CRBS608V | CRBS608VUU | 60 | 76 | 8 | 0.4 | 64 | 71 | 94 |
| 70 | CRBS708 | CRBS708AUU | CRBS708V | CRBS708VUU | 70 | 86 | 8 | 0.4 | 74 | 81 | 108 |
| 80 | CRBS808 | CRBS808AUU | CRBS808V | CRBS808VUU | 80 | 96 | 8 | 0.4 | 84 | 91 | 122 |
| 90 | CRBS908 | CRBS908AUU | CRBS908V | CRBS908VUU | 90 | 106 | 8 | 0.4 | 94 | 101 | 135 |
| 100 | CRBS1008 | CRBS1008AUU | CRBS1008V | CRBS1008VUU | 100 | 116 | 8 | 0.4 | 104 | 111 | 152 |
| 110 | CRBS1108 | CRBS1108AUU | CRBS1108V | CRBS1108VUU | 110 | 126 | 8 | 0.4 | 114 | 121 | 163 |
| 120 | CRBS1208 | CRBS1208AUU | CRBS1208V | CRBS1208VUU | 120 | 136 | 8 | 0.4 | 124 | 131 | 184 |
| 130 | CRBS1308 | CRBS1308AUU | CRBS1308V | CRBS1308VUU | 130 | 146 | 8 | 0.4 | 134 | 141 | 199 |
| 140 | CRBS1408 | CRBS1408AUU | CRBS1408V | CRBS1408VUU | 140 | 156 | 8 | 0.4 | 144 | 151 | 205 |
| 150 | CRBS1508 | CRBS1508AUU | CRBS1508V | CRBS1508VUU | 150 | 166 | 8 | 0.4 | 154 | 161 | 220 |
| 160 | CRBS16013 | CRBS16013AUU | CRBS16013V | CRBS16013VUU | 160 | 186 | 13 | 0.6 | 166 | 179 | 620 |
| 170 | CRBS17013 | CRBS17013AUU | CRBS17013V | CRBS17013VUU | 170 | 196 | 13 | 0.6 | 176 | 189 | 675 |
| 180 | CRBS18013 | CRBS18013AUU | CRBS18013V | CRBS18013VUU | 180 | 206 | 13 | 0.6 | 186 | 199 | 710 |
| 190 | CRBS19013 | CRBS19013AUU | CRBS19013V | CRBS19013VUU | 190 | 216 | 13 | 0.6 | 196 | 209 | 740 |
| 200 | CRBS20013 | CRBS20013AUU | CRBS20013V | CRBS20013VUU | 200 | 226 | 13 | 0.6 | 206 | 219 | 780 |
Applications
These bearings are widely used in the rotating parts of industrial robots, optical apparatus and medical equip ments, etc., which contribute compactness and lightness.
