High Precision tapered roller bearing


Code	Model	d	D	B	r	L	kg	Cr	Cor	rpm

Luoyang Jiayu Bearing is a professional large high precision tapered roller bearing supplier. We provide high precision tapered roller bearings whose precision, preload and friction torque all meet international standards.

The high precision tapered roller bearing is a type of bearing that has tapered cone and cup between which taper rollers are arranged. The extension lines of them intersect at one point of shaft axis;therefore,pure rolling on the raceway can be achieved.

Mounting

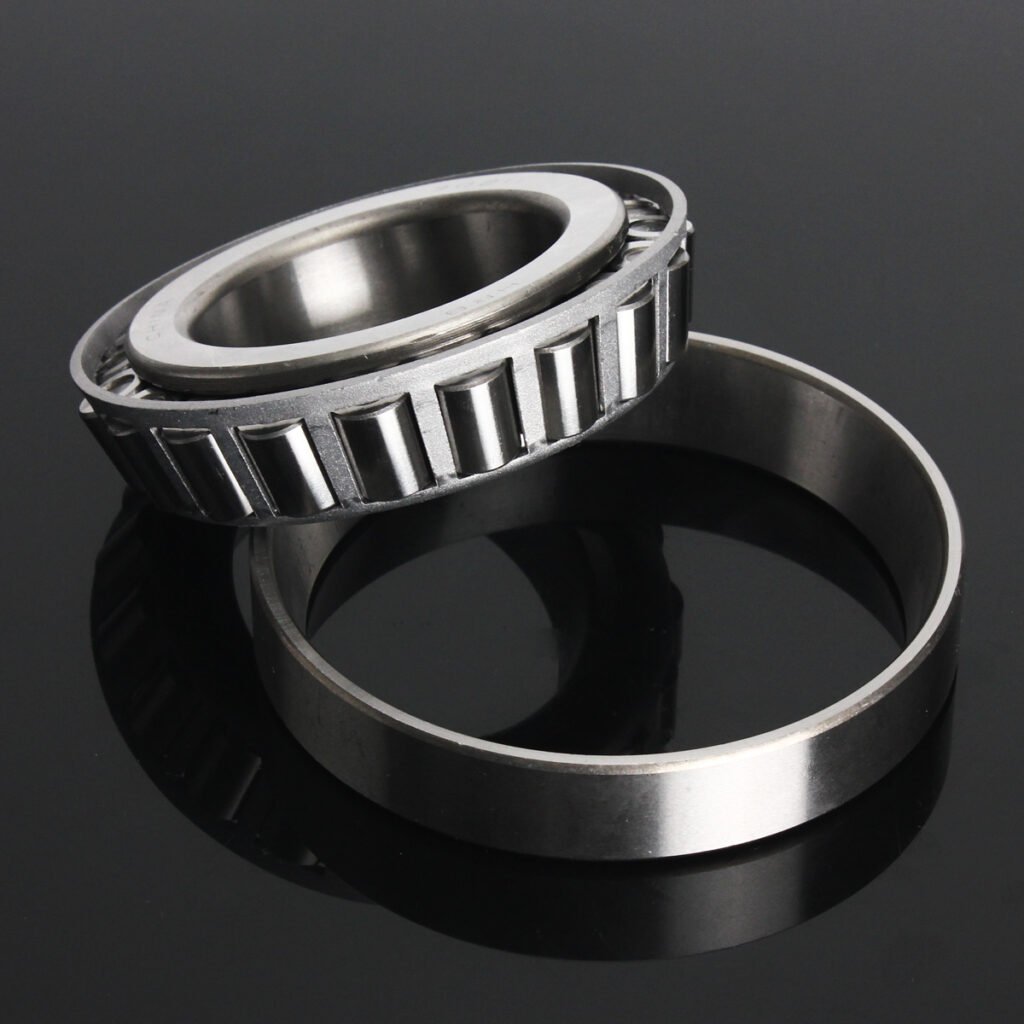

Tapered roller bearing are separabel.Bearing cone(including roller,cage and inner ring)and cup(outer ring) can be separated,therefore,it can be easily assembled on the bearing journal and bearing block.

Load

Taper roller bearings are able to accommodate radial loads,unidirectional axial load and combined loads of radial and axial.The axial load carrying capacity of tapered roller bearing is largely determined by the contact angle,which corresponding to the raceway angle of the cup,the larger the contact angle,the higher the axial load carrying capacity is.

Accuracy

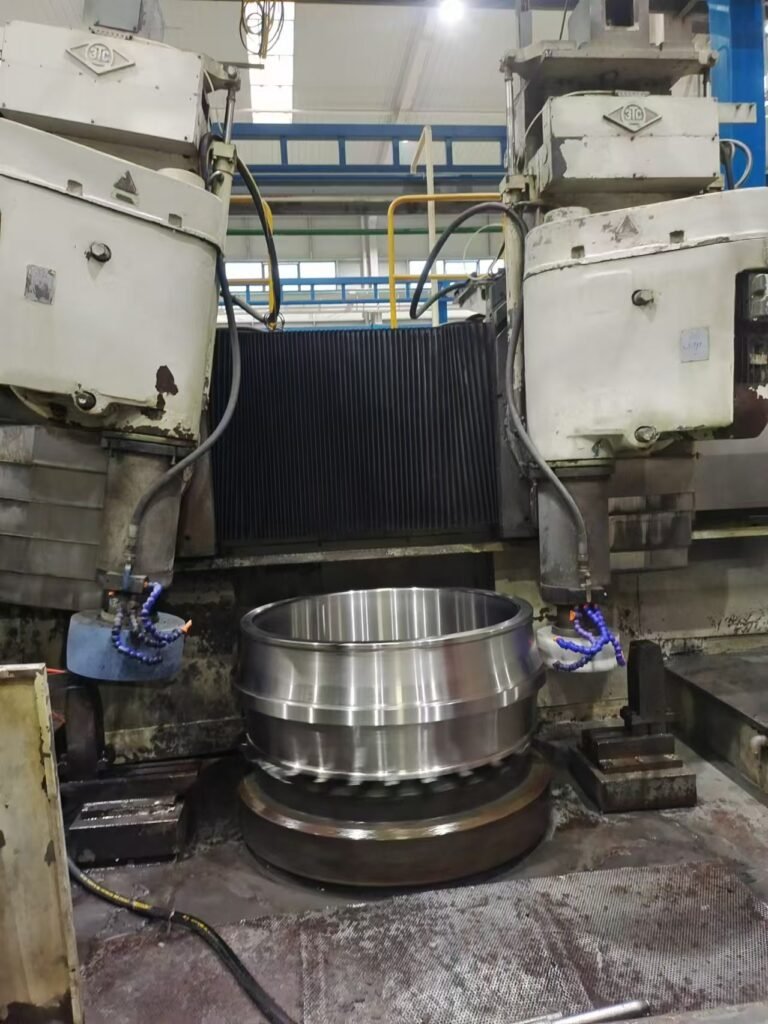

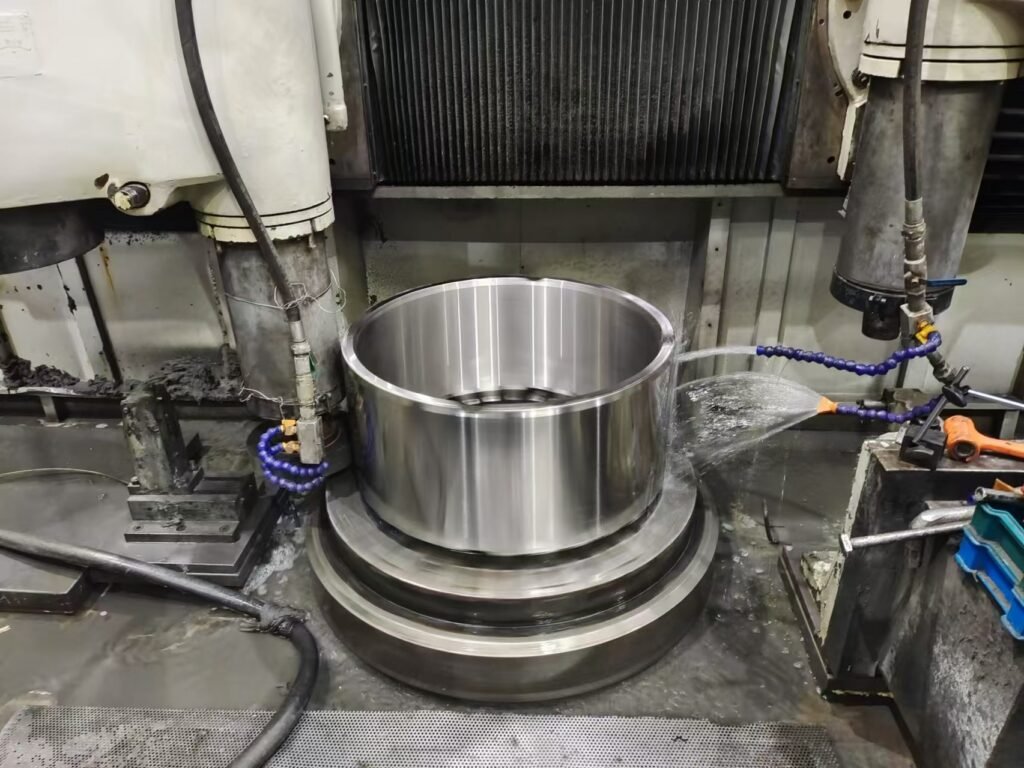

With advanced equipment and rich experience in bearing design and manufacturing, we can provide high precision tapered roller bearing with precision grade of P4 and P2.

We provide large precision bearings with ID from 15 to 400mm and OD up to 650mm.

We also design bearing according to your specific requirements

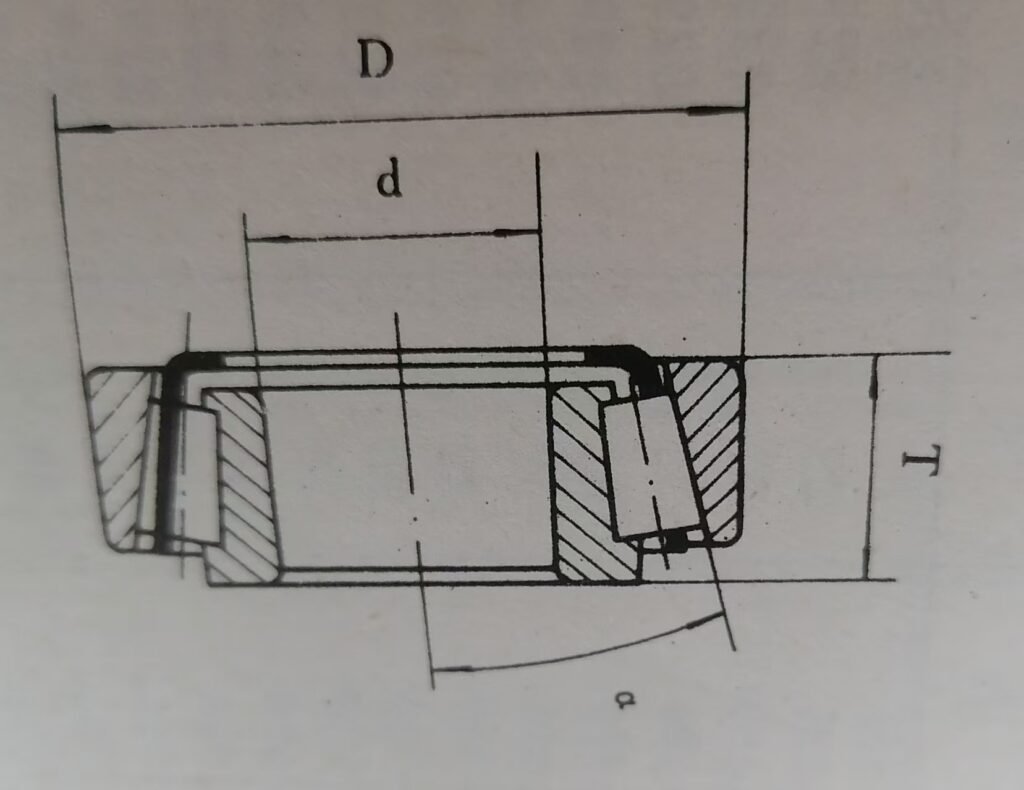

Bearing designation	Dimensions. mm										Load factor				Load ratings. N		Limiting rotational speed. min-1
																			dynamic	static	lubricant
																				d	D	D1	T	T1	B	C	C1	r min	r2 min	e	Y1	Y2	Y0	Cr	Cor	grease	oil
																			2697709A	45	75	81	77.588	9	20	69	4.95	1	0.3	0.39	1.72	2.56	1.68	107000	177000		5000
															697510AШ2	50	90	100	54.625	10.8	23	45	6	1.5	0.5	0.42	1.6	2.39	1.57	157000	232000		5600
697810ЛK**	50*	90*	94.76	64	11.11	29	51.3	4.76	2	0.3	0.3	2.23	3.32	2.18	125000	168000		3200
697711ЛKУ**	55*	100*	104.5	65	10	29.5	54	4.5	2	0.3	0.34	2	2.99	1.96	152000	224000		3200
697712Л**	60	100	104.5	58	10	26.5	47	4.7	1.3	0.3	0.35	1.95	2.9	1.9	138000	200000		3200
697814Л**	70	120	125.55	71.24	11.11	32	59.88	5.55	1.8	0.5	0.3	2.23	3.32	2.18	200000	315000		3200
697815Л**	75	130	136	79	12	37	66	5.5	1.8	0.5	0.22	3.07	4.57	3	268000	412000		2400
697716Л**	80	140	147	85	13.93	38.5	69.14	6.2	2.3	0.5	0.24	2.76	4.11	2.7	268000	434000		2800
697817Л**	85	140	146.34	85	14.28	38.5	69.14	6.35	2.3	0.5	0.24	2.76	4.11	2.7	268000	434000		2700
697920Л1У**	98.425	152.4	159.34	92	15	42	76	7.3	0.7	0.5	0.25	2.71	4.04	2.65	327000	545000		2400
697724Л1**	120	180	188	96.8	15.15	44	80.5	7	2.5	0.6	0.3	2.28	3.39	2.23	364000	668000		2000
697824Л**	120	190	198	108	17.6	50	88.8	8	2.5	0.6	0.27	2.54	3.74	2.45	450000	807000		2000
697924У**	120	200	208	84.05	19.86	38	64	10	2.3	0.3	0.46	1.47	2.19	1.44	417000	815000		2000
697725Л**	127*	215.9*	224	110	17	47	92	8	2.5	1	0.22	3.07	4.57	3	490000	926000		1800
697927Л**	133.35*	196.85*	204	92	18	38	76	10	2.5	0.6	0.33	2.04	3.04	1.99	261000	574000		1800
697828Л**	140	190	198	87	12.7	38	73	5.9	2	0.5	0.33	2.04	3.04	2	261000	574000		2000
697928Л1**	140	210	218	100	15	46	84	7	2.3	0.7	0.22	3.07	4.57	3	489000	923000		2000
697732Л**	160	240	248	110	17	50	92	8	2.5	0.9	0.25	2.69	4	2.63	544000	1110000		1600
697737Л**	185	235	243	85	14	37	70	6.55	2	0.5	0.22	3.11	4.64	3.04	337000	725000		1600
697837Л	185	240	248	84.9	14	37	70	6.55	2	0.5	0.22	3.11	4.64	3.04	338000	727000		1200
697838Л**	190	290	304	130	23	52	108	12	2.5	0.9	0.38	1.78	2.65	1.74	697000	1310000		1300
697847Л	234.95*	327.025*	336.55	122	25.4	61	90.24	9.52	6	1.5	0.33	2.03	3.02	1.98	720000	1700000		1500
697848ЛУ**	240	320	334	128.8	19.5	56	107	9	3	0.5	0.33	2.03	3.02	1.98	721000	1740000		1000

Bearing designation	Dimensions. mm							Load factor				Load ratings, N		Limiting rotational speed, min-1
																Mass.
																kg
												dynamic	static	lubricant
	d	D	T	B	C	r min	r2 min	e	Y1	Y2	Y0	Cr	Cor	grease	oil	m
97506A	30	62	49.625	20	41	1	0.3	0.36	1.85	2.75	1.81	94400	129000	5000	6300	0.661
97606AУ	30	72	63.5	27	52	1.5	0.5	0.31	2.14	3.2	2.09	139000	179000	4000	5000	1.22
57707AУ	35	80	57	23.3	45	1.5	0.3	0.55	1.24	1.84	1.2	118000	171000	4500	5800	1.267
97509A	45	85	54.625	23	45	1.5	0.5	0.42	1.62	2.42	1.59	148000	214000	4000	5000	1.089
97510A	50	90	54.625	23	45	1.5	0.5	0.42	1.6	2.4	1.57	157000	232000	3200	4000	1.36
97810Л1	50	90	64	28.5	51.3	1.5	0.3	0.31	2.21	3.29	2.16	125000	168000		5700	1.649
97212A	60	110	54	22	44	1.8	0.5	0.4	1.57	2.45	1.55	189000	267000	2300	2900	1.97
97512A1	60	110	64.625	28	55	2	0.5	0.4	1.67	2.5	1.63	237000	357000	2800	3600	2.537
97913A	66.675	110	52.388	26.194	46.038	0.8	0.3	0.43	1.55	2.3	1.52	183000	330000	2800	3600	1.98
97515A1	75	130	74.625	31	62	2	0.5	0.44	1.55	2.3	1.52	295000	463000	2600	3200	3.732
97815Л	75	130	79	37	66	1.8	0.5	0.22	3.07	4.57	3	268000	412000		2400	3.905
97516A	80	140	79.625	33	65	2.5	0.6	0.4	1.68	2.5	1.64	339000	525000	2200	2800	4.574
97818Л	90	140	68	30.5	56	2	0.5	0.41	1.64	2.43	1.62	192000	292000		3000	3.41
97718Л	90	145	84	38	69	2	0.5	0.26	2.58	3.85	2.53	280000	473000		2500	5.6
97218A	90	160	77.25	30	64	2.5	0.6	0.35	1.78	2.54	1.89	357000	536000	1600	2000	5.87
97518A	90	160	95.25	40	78	2.5	0.5	0.42	1.6	2.4	1.57	470000	761000	2000	2600	7.22
97919Л	95	145	84	38	69	1.8	0.5	0.4	1.57	2.55	1.42	280000	471000		2500	5.11
97921P	95	170	47.675	20.638	43	1.5	0.5	0.59	1.14	1.7	1.11	169000	321000	1500	1900	4.785
97920Л**	100	150	92	42	76	2	0.5	0.4	1.56	2.45	1.39	327000	545000		2400	5.26
97520A	100	180	111.25	46	92	3	0.9	0.42	1.6	2.4	1.57	585000	967000	1700	2200	11.07
597820ЛKУ	101.6*	165.1*	106.35	49.5	114.3	2	0.9	0.26	2.56	3.8	2.5	421000	783000	2000	2500	10.273
97521A	105	190	117.25	50	96	3	0.9	0.42	1.6	2.4	1.57	629000	1110000	1500	2000	13.47
97822У	110	180	103	38	84.37	3	0.8	0.46	1.47	2.19	1.44	417000	815000	1500	2000	9.88
97724Л1**	120	180	96.8	44	80.5	2.5	0.6	0.2	2.8	3.9	2.5	364000	668000		2500	8.02
597824MУ	120	195	126	57.15	131.35	3	1.1	0.26	2.55	3.8	2.5	668000	1330000	1600	2000	14.624
597826XKM1У	129.96	230	149.25	71.5	150	4	1.1	0.26	2.55	3.8	2.49	984000	1730000	1300	1600	25.192
597026XMУ	129.96	250	149.25	71.5	156.8	4	1.1	0.26	2.55	3.8	2.5	984000	1730000	1300	1600	34.712
597726XMУ	129.96	250	149.25	71.5	160	4	1.1	0.26	2.55	3.8	2.5	984000	1730000	1300	1600	35.012
597126XMУ	129.96	250	160	71.5	160	4	1.1	0.26	2.55	3.8	2.5	984000	1730000	1300	1600	37.8
2097726KM	130	210	109.25	42	90	2.5	0.6	0.37	1.83	2.7	1.8	501000	951000	1000	1300	13.546
97526A	130	230	149.25	64	120	4	1	0.44	1.55	2.3	1.52	972000	1850000	1250	1600	25.38
2097128M	140	210	88.25	42	69	2.5	0.6	0.31	1.83	2.72	1.77	501000	951000	1000	1300	9.98
2097730KM	150	250	137.25	60	112	3	0.9	0.24	2.76	4.1	2.7	918000	1710000	1250	1600	24.787
597830XMУ	150	250	175	72.6	175	3	1.7	0.26	2.55	3.8	2.5	943000	1940000	1300	1600	33.268
97432M	158.75*	225.425*	85.725	39.687	69.85	3.5	0.5	0.37	1.8	2.7	1.76	446000	1060000	1600	2000	10.9
597832Л	160	220	66	30	66	2	1	0.35	1.95	2.9	1.9	231000	481000	1300	1800	7.69
97938P	160	270	87.25	41	86	2	2	0.38	1.76	2.62	1.72	575000	1270000	1100	1400	21.458
97936Л**	177.8*	288.925*	142.875	52	111.125	2.5	0.9	0.38	1.78	2.65	1.74	697000	1310000		1800	31.14
2097136A	180	280	134	64	108	3	0.9	0.42	1.6	2.4	1.56	1070000	2180000	1000	1250	29.29
2097736M	180	300	163.25	72	134	4	1	0.26	2.62	3.9	2.56	1310000	2620000	800	1250	42.5
597840Л	200	250	70	30	70	1.5	1	0.41	1.65	2.5	1.6	257000	588000	1000	1500	8.15
2097140**	200	310	151	66	123	2.5	0.9	0.37	1.82	2.65	1.75	1120000	2350000		1300	39.2
2097140AM	200	310	151	70	123	3	0.9	0.29	1.57	2.3	1.53	1300000	2750000	1000	1250	39.39
2097740М	200	340	151	66	123	3	1	0.37	1.82	2.65	1.75	1700000	3380000	670	1000	63.884
97842	209.550*	282.575*	101.6	46.038	82.55	3.5	0.8	0.51	1.34	1.99	1.31	680000	1730000		1000	17.376
97944Л**	220	300	126	56	105	2.5	0.5	0.16	4.32	6.51	4.25	696000	1620000		1000	25.9
2097144AM	220	340	164	76	130	4	1	0.43	1.57	2.3	1.53	1530000	3260000	800	1000	51.94
97945K	228.6*	358.775*	152.4	67	117.47	3.5	1.5	0.33	2.03	3.02	1.62	1270000	3260000	800	1000	56.8
97846Л**	230	330	122	61	90.24	2.3	0.9	0.33	2.03	3.02	1.98	729000	1770000		1500	31.529
97946K	231.775*	358.775*	152.4	67	117.47	6.4	1.5	0.33	2.03	3.02	1.62	1270000	3260000	630	1000	55.4
2097948Л1**	240	320	110	55	90	3	0.9	0.33	2.03	3.02	1.98	729000	1770000		1500	22.87
97848ЛУ**	240	320	128	56	107	3	0.9	0.33	2.03	3.02	1.98	721000	1740000		1500	26.45
2097148KМ	240	360	165	76	130	4	1.0	0.32	2.13	3.17	2.08	1375000	2998000	800	1000	54.160
2097148М	240	360	164	72	130	4	1.1	0.34	2.13	3.17	2.08	1351000	2932000	800	1000	53.8
2097748M	240	400	209	95	168	4	1.5	0.31	2.21	3.3	2.16	2290000	4590000	630	800	98.146
97951	254*	358.775*	152.4	67	117.47	3.5	1.5	0.33	2.03	3.02	1.62	1270000	3260000	630	1000	45.3
597852Л	260	360	112	56	112	2.1	1.1	0.37	1.82	2.7	1.8	869000	1860000	630	800	32.56
2097952Л**	260	360	133	67	109	2.5	0.9	0.37	1.82	2.71	1.78	1080000	2450000		800	39.4
2097952A	260	360	134	63.5	109	3	0.5	0.4	1.66	2.47	1.62	1270000	3260000	630	800	39.632
2097152AM	260	400	185	87	146	5	1.5	0.43	1.55	2.3	1.52	1990000	4310000	630	800	79.68
927952Л**	260.35*	419.1*	184.15	92.075	136.525	6.4	1.5	0.59	1.14	1.69	1.1	1080000	2460000		800	93.03
597856Л	280	380	112	51	112	2.1	1.1	0.43	1.56	2.3	1.53	826000	1900000	630	800	35.7
97960	300.038	422.275*	174.625	82.55	136.52	6.4	1.5	0.33	2	3	1.99	1920000	4790000	500	630	71.54
97963	317.5*	444.5*	146.05	61.912	98.425	8	1.5	0.38	1.79	2.66	1.76	1300000	2900000	500	630	61.3
97966M	330.2*	482.6*	177.8	80.167	127	6.4	1.5	0.39	1.73	2.57	1.69	1960000	4270000	400	500	96.9
97969Л**	346.075*	488.95*	200.025	95.25	158.75	6.4	1.5	0.33	2.02	3	2	2340000	5920000		500	112.5
97974	368.249*	523.875*	214.312	101.6	169.86	6.4	1.5	0.32	2.13	3.17	2.08	2940000	7220000	400	500	142.47
1097776M	380	620	241	106	170	6	2	0.46	1.47	2.19	1.44	3278000	6440000	320	400	243.92
97981	406.4*	574.675*	157.162	78.581	106.36	6.4	1.5	0.49	1.36	2.03	1.33	1660000	3760000	350	450	110.55
97983	415.925*	590.55*	244.475	114.3	193.67	6.4	1.5	0.33	2.05	3.05	2	3590000	9110000	320	400	197.74
1097784М	420	700	274	122	200	6	3	0.32	2.12	3.15	2.07	4593000	4593000	300	300	402.000
97996	479.425*	679.45*	276.225	125.588	222.25	6.4	1.5	0.33	2.04	3	2	4710000	12300000	250	315	300.58
10979/500М	500	670	179	78	130	6	2	0.44	1.55	2.31	1.52	2341000	5900000	260	320	166
971/560М	560	820	258.5	115	185	6	3	0.39	1.71	2.54	1.67	4716000	10650000	180	240	414
10979/710М	710	950	238	106	175	6	3	0.46	1.47	2.19	1.44	4430000	12220000	160	200	445

Applications

Machine Tools

CNC Lathes & Machining Centers: Support main spindles for heavy-duty cutting, minimizing deflection to ensure dimensional accuracy .
Grinding Machines (Surface, Cylindrical, Optical): Enable ultra-smooth workpiece finishes by maintaining stable spindle speed and radial runout control .
Gear Hobbers & Jig Boring Machines: Deliver high stiffness to reduce vibration, ensuring precision gear cutting and fine positioning .
Rotary Indexing Tables: Provide precise angular positioning for automated machining lines
Metallurgical & Steel Equipment

Rolling Mill Backup Rolls: Ensure uniform metal strip thickness and a smooth surface finish .
Four-Row Tapered Bearings (TQITS): Used in high-speed rolling mills to minimize roll body runout and maximize precision .

Web/Offset Printing Presses: Support print cylinders and rollers for precise color registration and consistent print quality .
Paper Converting Machines: Maintain alignment in slitter, rewinder, and coating equipment .
Aerospace & Defense

Aircraft Landing Gear: Withstand extreme impact loads during takeoff/landing .
