Large precision thrust ball bearings

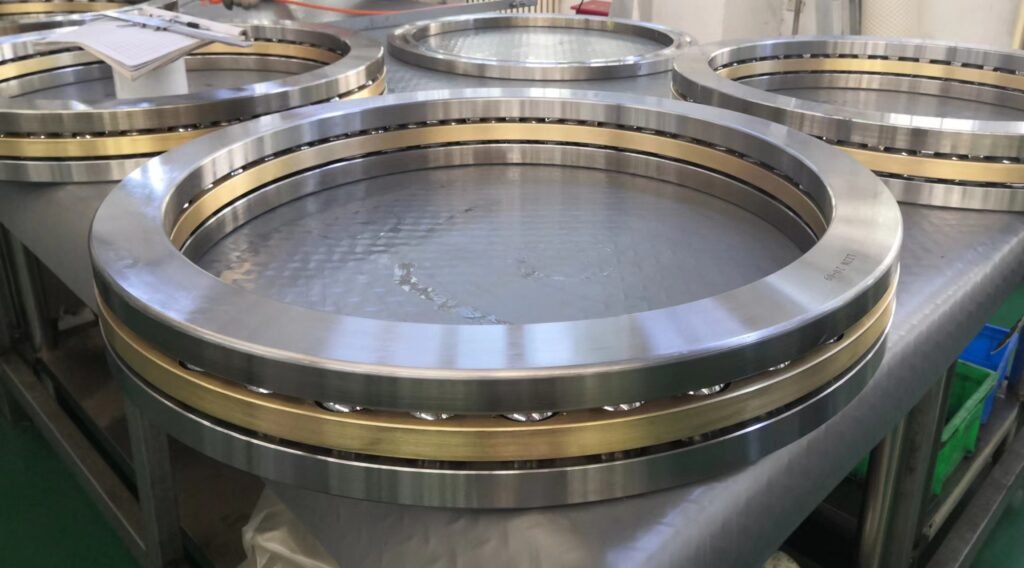

As professional manufacturer of large precision bearings，Jiayu bearing can produce super-precision thrust ball bearings which can only hold axial load but not radial load.The thrust ball bearings manufactured by Jiayu is designed with separated structure which means that shaft ring，stand ring,balls and cage are mounted separately.Cage is often made of machined brass cage or steel cage and guided by rolling elements. We provide high precision large thrust ball bearing with diameter from 300mm to 2500mm. Beside standard products,we also meet the special requirements of customers and provide complete solutions for them.

Material :Bearing steel; Cage:Machined metal;Load direction:Axial direction; Rotating speed:Low

Product details

Bearing Code	Inner diameter	Outer diameter	Height	Basic load rated （Dynamic）	Basic Load rated（Static）
	mm	mm	mm	C(kN)	Co(kN)
51160	300	380	62	322	1250
51260	300	420	95	575	2613
51164	320	400	63	352	1756
51264	320	440	95	543	2565
51168	340	420	64	358	1768
51268	340	460	96	575	2755
51368	340	540	160	1020	5100
51172	360	440	65	431	2110
51272	360	500	110	704	3610
51176	380	460	65	382	1740
51180	400	480	65	403	2014
51280	400	540	112	730	3800
59280	400	540	85	668	3250
51184	420	500	65	410	2090
51784	420	550	80	463	2574
51188	440	540	80	552	2730
51288	440	600	130	904	4150
51791	455	650	120	776	4851
51192	460	560	80	525	3010
51292	460	620	130	688	4504
51196	480	580	80	530	3100
51396	480	730	195	1065	6886
510/500	500	540	30	101	835
511/500	500	600	80	595	3250
512/500	500	670	135	864	5443
593/500	500	750	150	950	6320
511/530	530	640	85	707	4381
590/560	560	610	30	128	960
591/600	600	710	67	475	2950
511/600	600	710	85	689	4230
511/630	630	750	95	744	4680
512/630	630	850	175	1400	10000
517/630	630	810	100	894	5058
510/670	670	730	45	284	2160
511/670	670	800	105	859	6040
572/710	710	950	109	787	980
592/710	710	950	145	1025	1296
591/750	750	900	90	700	4900
517/780	780	930	100	800	6069
511/800	800	950	120	877	6990
512/800	800	1060	205	1810	12570
517/800	800	920	100	825	6120
591/850	850	1000	90	764	5920
511/850	850	1000	120	885	6770
517/980	980	1120	120	938	8380
591/1060	1060	1250	115	1210	10700
517/1190	1190	1390	115	1230	12300
517/1220V	1220	1360	60	648	6804
517/1380	1380	1540	130	1310	13700
511/1400	1400	1630	180	1750	17600
517/1720	1720	2000	180	2100	26900
517/1720-1	1720	1880	130	1250	15300
517/1750	1750	1950	140	1540	19400
517/1800	1800	2000	140	1550	19900
517/2220	2220	2500	180	2270	33600

Advantages

Because of superfinishing the raceway of shaft ring and housing ring after quenching,the roughness of surface decreased largely.

Based on the specific application,cage made of other material can be provided.
The accuracy of dimensions and rotation is in accordance of tolearance of P4 ,Grade P2 or higer accuracy products may be provided if needed

Applications

Machine tool table and main shaft ,such as High speed CNC vertical lathe,CNC superfinishing machine ,wind turbine,industrical pump,mining machine or oil-gas swivel platform,etc..
