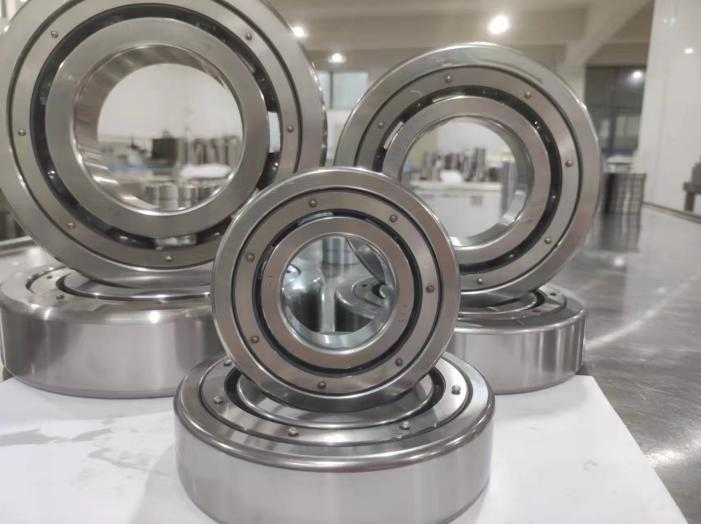

Low temperature Bearings for LNG

LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. In this application, the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. we have designed  LNG Pump Bearings to cope with these demanding requirements.

LNG pump bearings including:

1.Angular contact ball bearings

2.Deep groove ball bearings

Operating Conditions:
1. Speed: 1160 rpm – 3600 rpm
2.Gas temperature: –196° C up to 0° C
3. Mainly axial load
4.Very poor lubrication

Condition Description:

Arduous Environments

Corrosive Environment

High Speed

Low temperature

Industry:

Chemical and Pharmaceutical

Petrochemical

Features:

Stainless steel inner and outer rings

Stainless steel rolling elements/Ceramic balls

Riveted fluororesin cage/Ptfe cage

Long life

Benefits:

Corrosion resistant

Self-lubricating cage

High speed (up to 3600 rpm)

Extended life

Product list

Model	d (Inner diamter) (mm)	D (Outer diameter) (mm)	B(width) (mm)	rsmin	r1smin	Cr （KN）	Cor （KN）	Limit speed (r/min)
7205	25	52	15	1.0	0.3	15.0	9.0	26000
7206	30	62	16	1.0	0.3	22.0	14.0	22000
7207	35	72	17	1.1	0.6	29.0	19.0	19000
7208	40	80	18	1.1	0.6	30.5	21.6	17000
7209	45	85	19	1.1	0.6	39.0	27.5	15000
7210	50	90	20	1.1	0.6	40.5	30.5	14000
7305	25	62	17	1.1	0.6	18.3	10.6	18000
7306	30	72	19	1.1	0.6	24.8	15.4	15000
7307	30	80	21	1.5	0.6	30.6	19.6	14000
7308	40	90	23	1.5	0.6	37.0	24.4	12600
7309	45	100	25	1.5	0.6	47.6	31.8	12000
7310	50	110	27	2.0	1.0	54.6	39.2	10000

Note:1.Not all products are listed.For specific requirrements,please contact us no hesitation.

2.The value in the table is limit rotation speed in the normal lubrication.The rated load and limit rotation speed only for reference.
