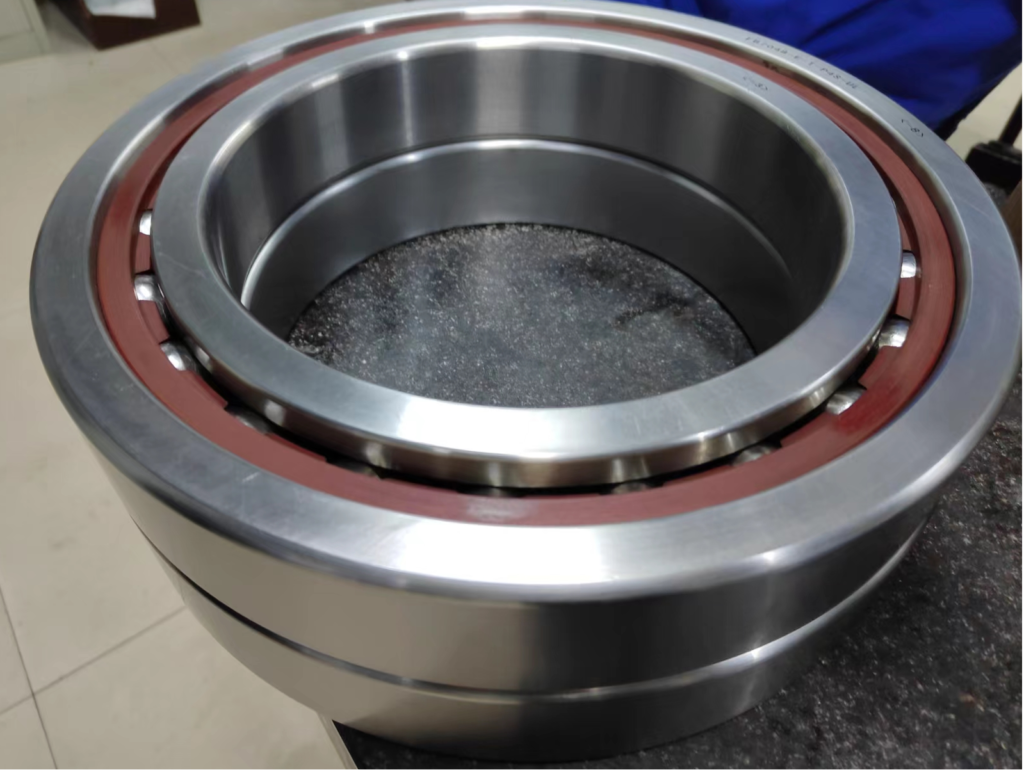

Precision angular contact ball bearing





CodeModeldDBrLkgCrCorrpm

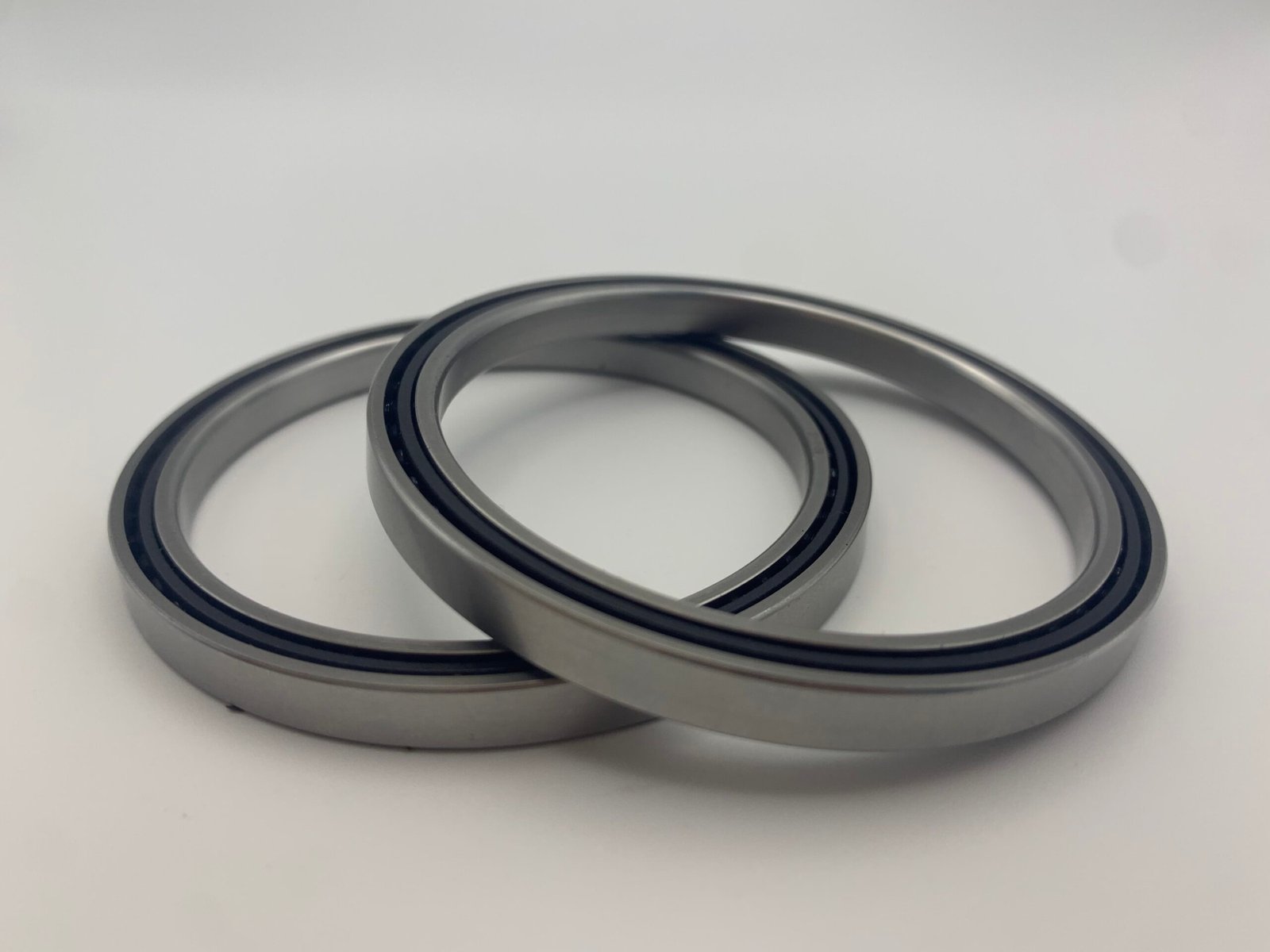

WA84063.576.26.35

Angular contact ball bearing can hold axial and radial load or combined load.The contact angle is of 15°,25°,30°,40°and 60°.Because axial load will be caused due to applied radial force,the angular contact bearing will be applied in pair,triplex set,quadruplex set or universal matched.

Types of Precision angular contact ball bearings

We design and manufacture high precision angular contact ball bearing which include high precision angular contact ball bearing(standard series),high precision and speed types,and high speed thrust types.

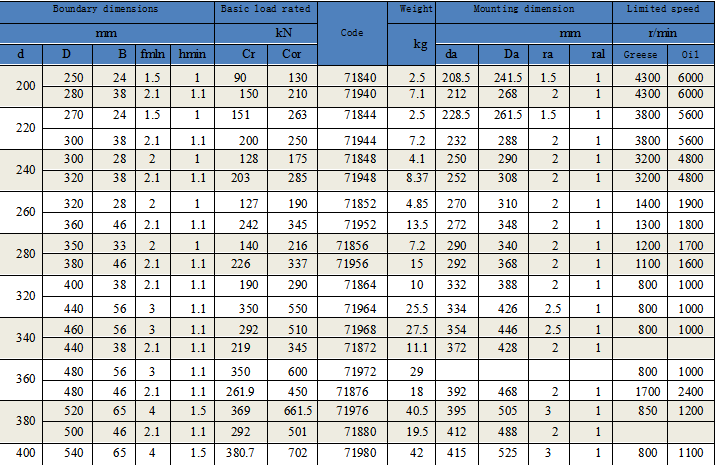

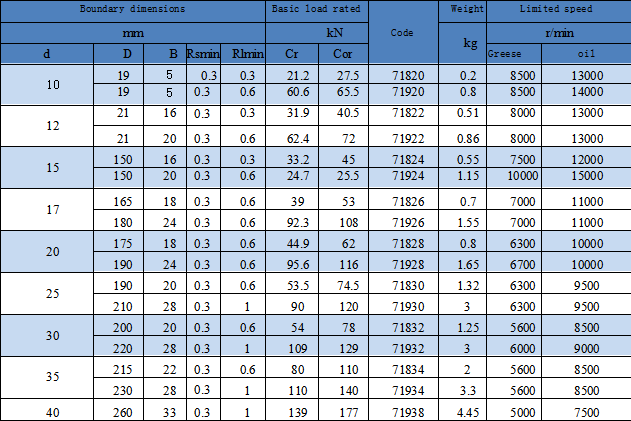

High precision angular contact ball bearing( standard series)

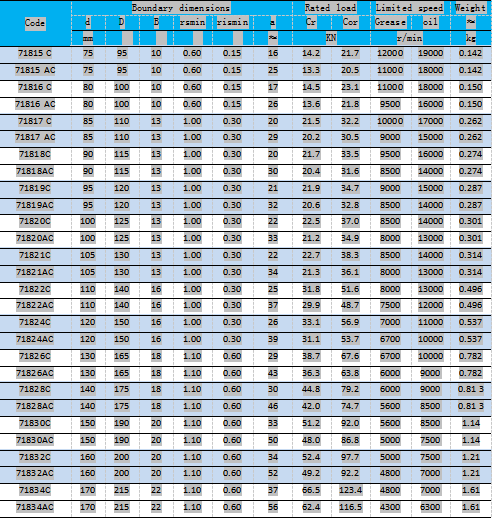

High speed angular contact ball bearing

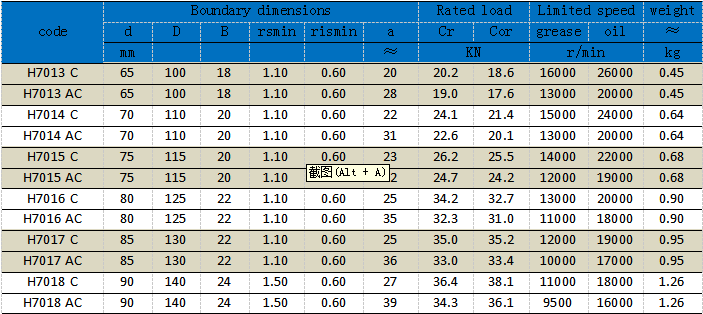

Ultra-high speed angular contact ball bearing

Material

Rings:GCr15 or 9Cr18,M50 steel or X30 steel

Cage:Nylon,PEEK,textolite cage,brass cage or specific cage

Rolling element:bearing steel or ceramic

Delivery: As customer requirement or suitable for long distance shipment
