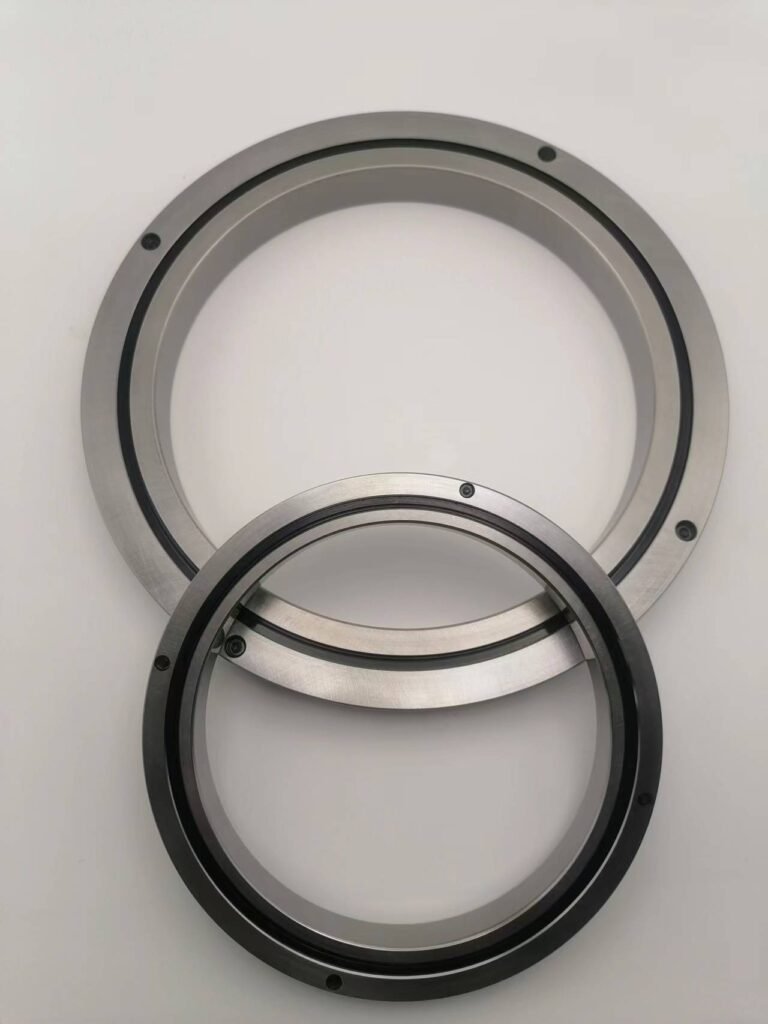

As the same structure of RB,RA series slim crossed roller bearings have integral inner ring and separate outer ring,but with the minimum width.
RA slim crossed roller bearing are suitable for robot and industrial manipulator where light weight and conpact structure is needed.
Features:
1.High rigidity
2.Saving space due to conpact structure
3.Saving cost
4.Long life
Our advantage and equipment
With rich experience,we communicate with customers about the technical questions in advance and provide reliable solutions based on the work conditions.
Advanced measuring instruments guarantee the precision of the bearings,so we have advanced bearing software and measuring instruments,such as roundness tester,crown measuring instruments,CMM,etc..

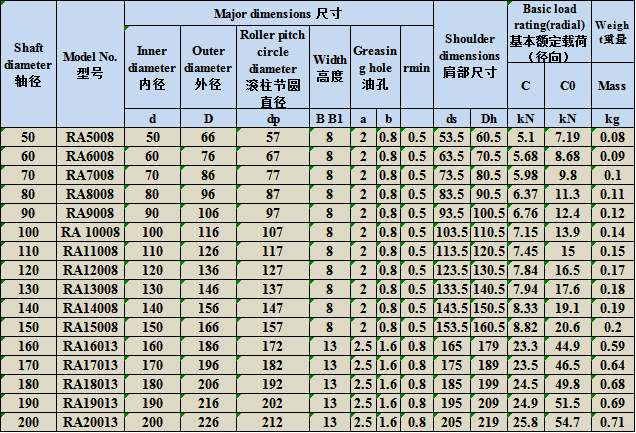

Table RA bearings
| Shaft diameter轴径 | Model No.型号 | Major dimensions 尺寸 | Shoulder dimensions肩部尺寸 | Basic load rating(radial)基本额定载荷 （径向） | Weight重量 | ||||||||
| Inner diameter内径 | Outer diameter外径 | Roller pitch circle diameter 滚柱节圆 直径 | Width高度 | Greasing hole油孔 | rmin | ||||||||
| C | C0 | Mass | |||||||||||
| d | D | dp | B B1 | a | b | ds | Dh | kN | kN | kg | |||
| 50 | RA5008 | 50 | 66 | 57 | 8 | 2 | 0.8 | 0.5 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
| 60 | RA6008 | 60 | 76 | 67 | 8 | 2 | 0.8 | 0.5 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| 70 | RA7008 | 70 | 86 | 77 | 8 | 2 | 0.8 | 0.5 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| 80 | RA8008 | 80 | 96 | 87 | 8 | 2 | 0.8 | 0.5 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| 90 | RA9008 | 90 | 106 | 97 | 8 | 2 | 0.8 | 0.5 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
| 100 | RA 10008 | 100 | 116 | 107 | 8 | 2 | 0.8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
| 110 | RA11008 | 110 | 126 | 117 | 8 | 2 | 0.8 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| 120 | RA12008 | 120 | 136 | 127 | 8 | 2 | 0.8 | 0.5 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| 130 | RA13008 | 130 | 146 | 137 | 8 | 2 | 0.8 | 0.5 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| 140 | RA14008 | 140 | 156 | 147 | 8 | 2 | 0.8 | 0.5 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| 150 | RA15008 | 150 | 166 | 157 | 8 | 2 | 0.8 | 0.5 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| 160 | RA16013 | 160 | 186 | 172 | 13 | 2.5 | 1.6 | 0.8 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| 170 | RA17013 | 170 | 196 | 182 | 13 | 2.5 | 1.6 | 0.8 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| 180 | RA18013 | 180 | 206 | 192 | 13 | 2.5 | 1.6 | 0.8 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| 190 | RA19013 | 190 | 216 | 202 | 13 | 2.5 | 1.6 | 0.8 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| 200 | RA20013 | 200 | 226 | 212 | 13 | 2.5 | 1.6 | 0.8 | 205 | 219 | 25.8 | 54.7 | 0.71 |
Applications
Industrial robot joints
Manipulator
IC manufacturing machines
