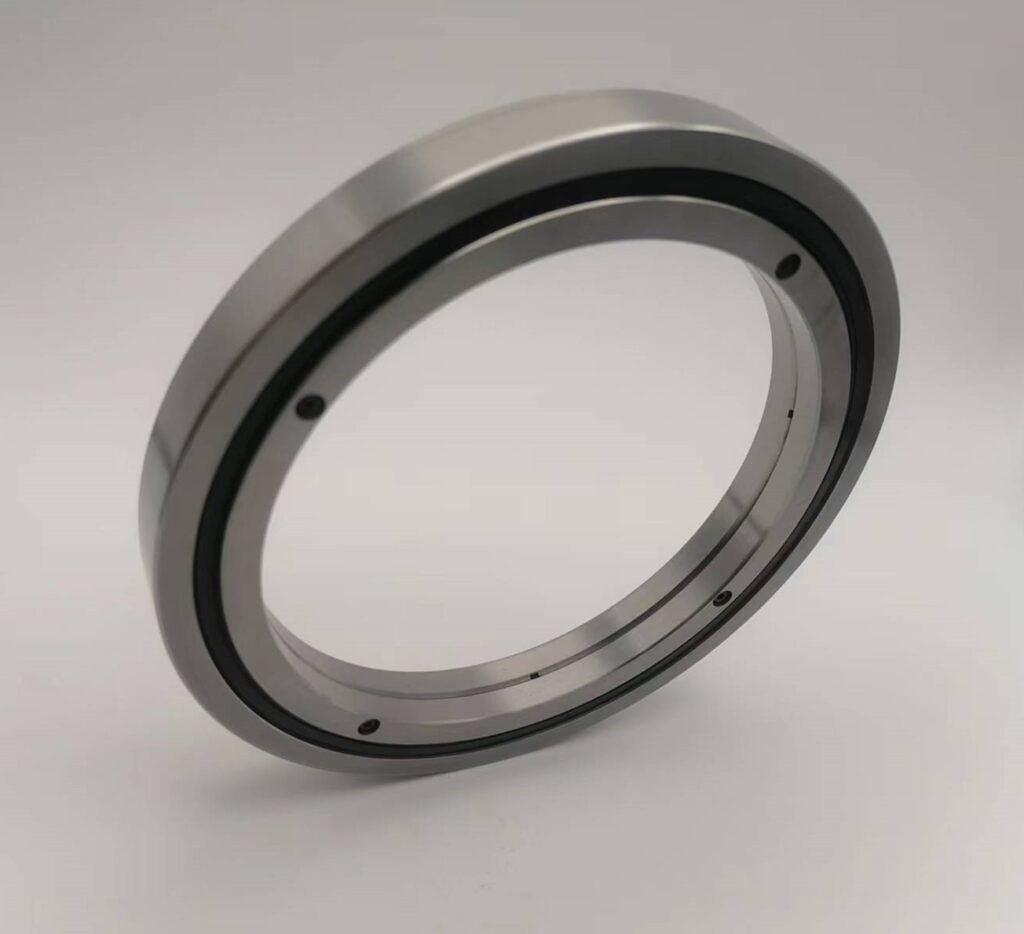

RE two-piece inner ring type crossed roller bearing


Code	Model	d	D	B	r	L	kg	Cr	Cor	rpm
	RE2008	20	36	8			0.04

RE series crossed roller bearings have the same dimensions as the RB,but with two-piece inner ring and integrated outer ring.This kind of bearing is suitable for applications where high accuracy of outer ring is required.

Features

1.Excellent running accuracy-due to sepearate inner ring,the clearance of bearing can be adjusted,so high accuracy will be achieved even with preload.

2.Easy to assemble

3.Sperator can prevent rollers from tilting

4.High load capacity

Model RE with two-piece inner ring and integrated outer ring

轴径Shaft diameter	型号Model No.	尺寸 Major dimensions							肩部尺寸Shoulder dimensions		基本额定载荷（径向） Basic load rating (radial)		重量Mass
		内径Inner diameter d	外径Outer diameter D	滚柱节圆直径 Roller pitch circle diameter dp	宽度Width B B1	油孔Greasing hole		倒角Chamfer rmin	ds	Dh	C kN	C0 kN	kg
		内径Inner diameter d	外径Outer diameter D	滚柱节圆直径 Roller pitch circle diameter dp	宽度Width B B1	a	b	倒角Chamfer rmin	ds	Dh	C kN	C0 kN	kg
20	RE2008	20	36	29	8	2	0.8	0.5	23.5	30.5	3.23	3.1	0.04
25	RE2508	25	41	34	8	2	0.8	0.5	28.5	35.5	3.63	3.83	0.05
30	RE3010	30	55	43.5	10	2.5	1	0.6	37	47	7.35	8.36	0.12
35	RE3510	35	60	48.5	10	2.5	1	0.6	41	51.5	7.64	9.12	0.13
40	RE4010	40	65	53.5	10	2.5	1	0.6	47.5	58	8.33	10.6	0.16
45	RE4510	45	70	58.5	10	2.5	1	0.6	51	61.5	8.62	11.3	0.17
50	RE5013	50	80	66	13	2.5	1.6	0.6	57.5	72	16.7	20.9	0.27
60	RE6013	60	90	76	13	2.5	1.6	0.6	68	82	18	24.3	0.3
70	RE7013	70	100	86	13	2.5	1.6	0.6	78	92	19.4	27.7	0.35
80	RE8016	80	120	101.4	16	3	1.6	0.6	91	111	30.1	42.1	0.7
90	RE9016	90	130	112	16	3	1.6	1	98	118	31.4	45.3	0.75
100	RE10016	100	140	121.1	16	3	1.6	1	109	129	31.7	48.6	0.83
100	RE10020	100	150	127	20	3.5	1.6	1	113	133	33.1	50.9	1.45
110	RE11012	110	135	123.3	12	2.5	1	0.6	117	127	12.5	24.1	0.4
110	RE11015	110	145	129	15	3	1.6	0.6	122	136	23.7	41.5	0.75
110	RE11020	110	160	137	20	3.5	1.6	1	120	140	34	54	1.56
120	RE12016	120	150	136	16	3	1.6	0.6	127	141	24.2	43.2	0.72
120	RE12025	120	180	152	25	3.5	2	1.5	133	164	66.9	100	2.62
130	RE13015	130	160	146	15	3	1.6	0.6	137	152	25	46.7	0.72
130	RE13025	130	190	162	25	3.5	2	1.5	143	174	69.5	107	2.82
140	RE14016	140	175	160	16	3	1.6	1	147	162	25.9	50.1	1
140	RE14025	140	200	172	25	3.5	2	1.5	154	185	74.8	121	2.96
150	RE15013	150	180	166	13	2.5	1.6	0.6	158	172	27	53.5	0.68
150	RE15025	150	210	182	25	3.5	2	1.5	164	194	76.8	128	3.16
150	RE15030	150	230	192	30	4.5	3	1.5	173	210	100	156	5.3
160	RE16025	160	220	192	25	3.5	2	1.5	173	204	81.7	135	3.14
170	RE17020	170	220	196.1	20	3.5	1.6	1.5	184	198	29	62.1	2.21
180	RE18025	180	240	210	25	3.5	2	1.5	195	225	84	143	3.44
190	RE19025	190	240	219	25	3.5	1.6	1	202	222	41.7	82.9	2.99
200	RE20025	200	260	230	25	3.5	2	2	215	245	84.2	157	4
200	RE20030	200	280	240	30	4.5	3	2	221	258	114	200	6.7
200	RE20035	200	295	247.7	35	5	3	2	225	270	151	252	9.6
220	RE22025	220	280	250.1	25	3.5	2	2	235	265	92.3	171	4.1
240	RE24025	240	300	272.5	25	3.5	2	2.5	256	281	68.3	145	4.5
250	RE25025	250	310	280.9	25	3.5	2	2.5	268	293	69.3	150	5
250	RE25030	250	330	287.5	30	4.5	3	2.5	269	306	126	244	8.1
250	RE25040	250	355	300.7	40	6	3.5	2.5	275	326	195	348	14.8
300	RE30025	300	360	332	25	3.5	2	2.5	319	344	75.5	178	5.9
300	RE30035	300	395	345	35	5	3	2.5	322	368	183	367	13.4
300	RE30040	300	405	351.6	40	6	3.5	2.5	326	377	212	409	17.2
350	RE35020	350	400	376.6	20	3.5	1.6	2.5	363	383	54.1	143	3.9
400	RE40035	400	480	440.3	35	3	3.5	3.5	422	459	156	370	14.5
400	RE40040	400	510	453.4	40	3.5	3.5	3.5	428	479	241	531	23.5
450	RE45025	450	500	476.6	25	1.5	1.5	1.5	464	484	61.7	182	6.6
500	RE50025	500	550	526.6	25	1.5	1.5	1.5	514	534	65.5	201	7.3
500	RE50040	500	600	548.8	40	3	3.5	3.5	526	572	239	607	26
500	RE50050	500	625	561.6	50	3.5	3.5	3.5	536	587	267	653	41.7
600	RE60040	600	700	650	40	3	4	4	627	673	264	721	29
