Slewing drive is using the theory of worm and worm gear to realize the aim of high transimitting ratio.Slewing drive consists of slewing bearing,gear transmitting parts,housing and power.It is easy to mount,maintain it.Because of its special structure,the mounting space is saved.
Category
Slewing drive is categorized into spur gear,worm gear and helic gear types.Based on the applications,they can be designed and used in light, medium and heavy conditions.It can be drived by motor or hydraulic system.
Slewing drive with worm gear
Slewing drive with worm gear is the most popular products in three slewing drives and widely used.They are series production. Here is the introduction of slewing drive with worm gear bellow.

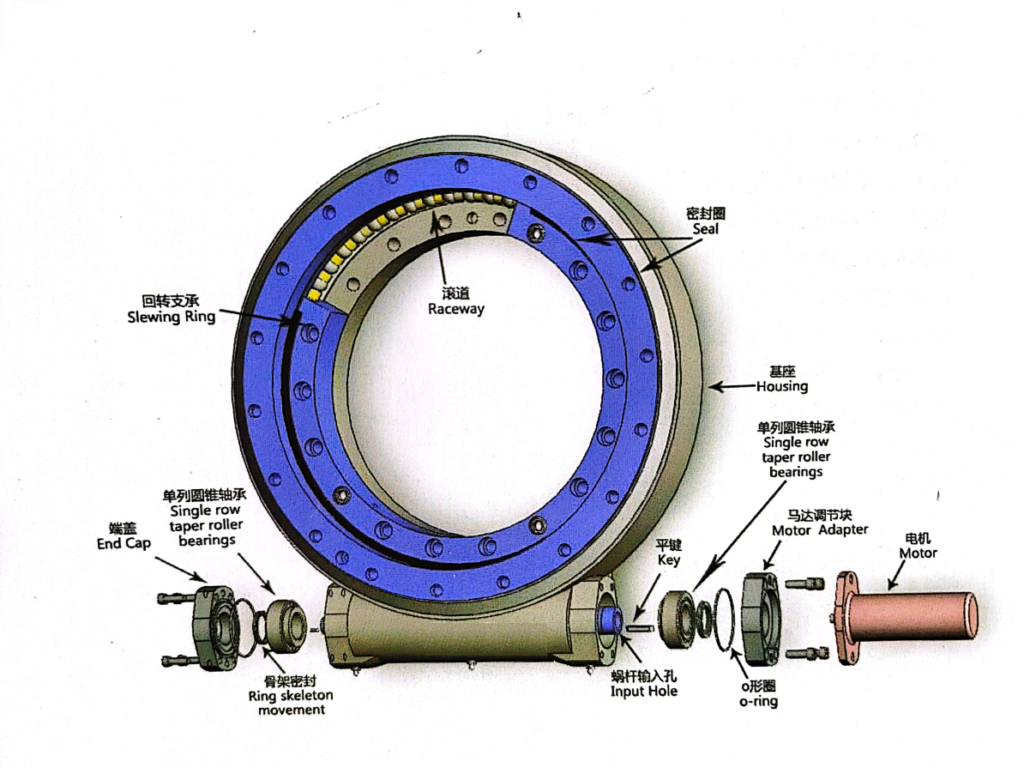

Worm gear slewing drive consists of worm,worm gear,slewing bearing,house and power system as shown below.
The core part of slewing drive is slewing bearing with good precision.The bearing is made of 50Mn or 52CrMo with high hardness and load capacity.The bearing can hold axial load,radial load and tilting moment.There are mounting holes,filler hole and seals in the bearing ring.The structure is compact and it is easy to mount because of worm gear in the outer ring.
Worm and worm gear are perpendicular to each other which ensures smooth and noiseless power transmission.In order to increase the hardness and life of envelope hourglass worm ,worm and worm gear are made of 42CrMo and treated by glow plasma nitriding which provides superior wear resistance and strength compared to conventional gas nitrided materials, and it also gets higher torque transmission capacity. The housing utilize premium cast steel to obtain high strength and durability.
Three advantages of worm gear slewing drive:
1 Modularization:High integrated structure,conpact design,small size and light weight
2 Safety:With self-locking to improve the steadiness, slewing drive is widely used in equipment which requires self-locking,such as crane and elevating work platform.
3 Simplifying the machine design.:Compared with common gear transmiting system,worm and worm gear have high speed-reduction ratio.In some conditions,it saves parts of main machines so the cost of customer can be reduced significantly.

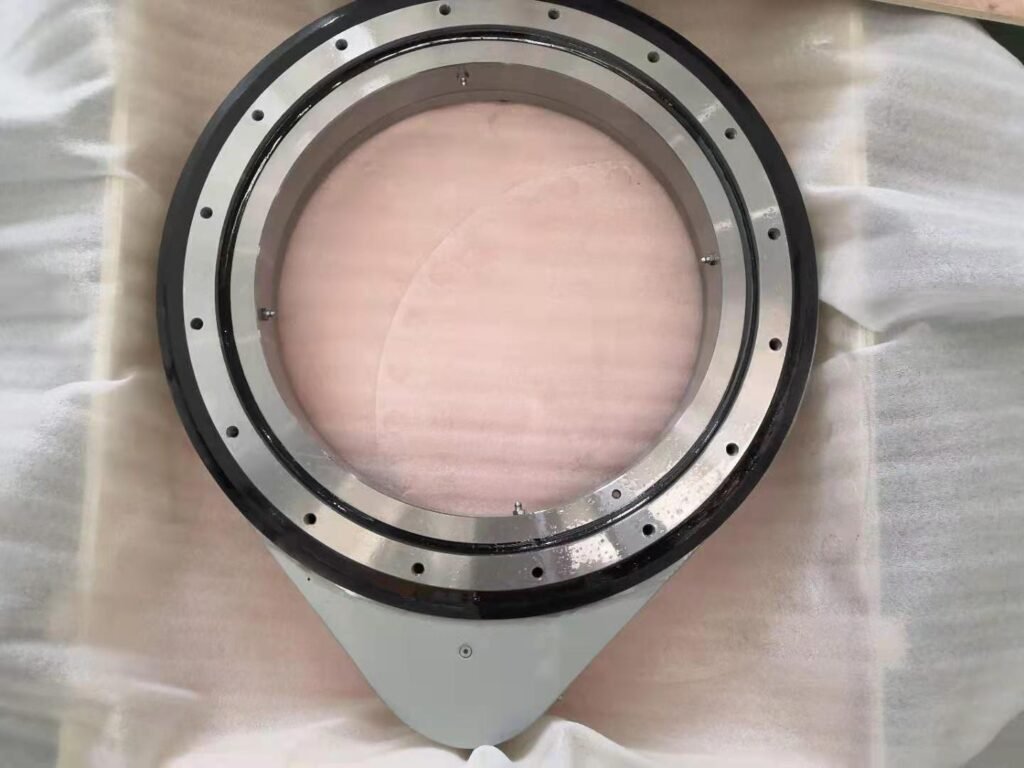

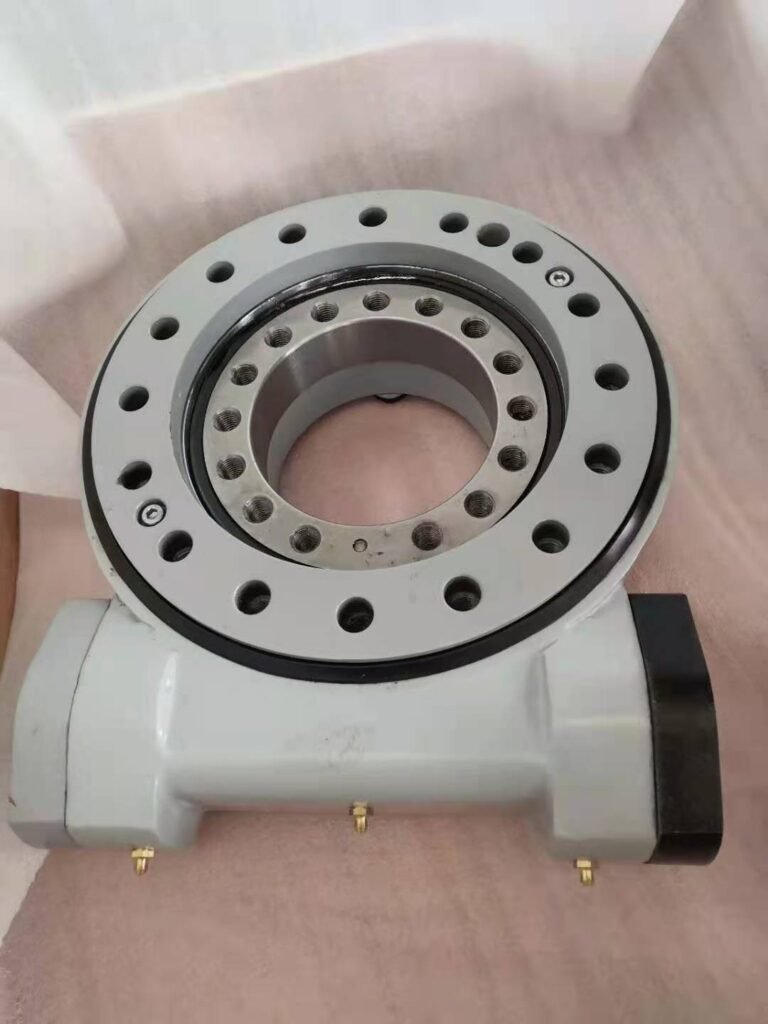

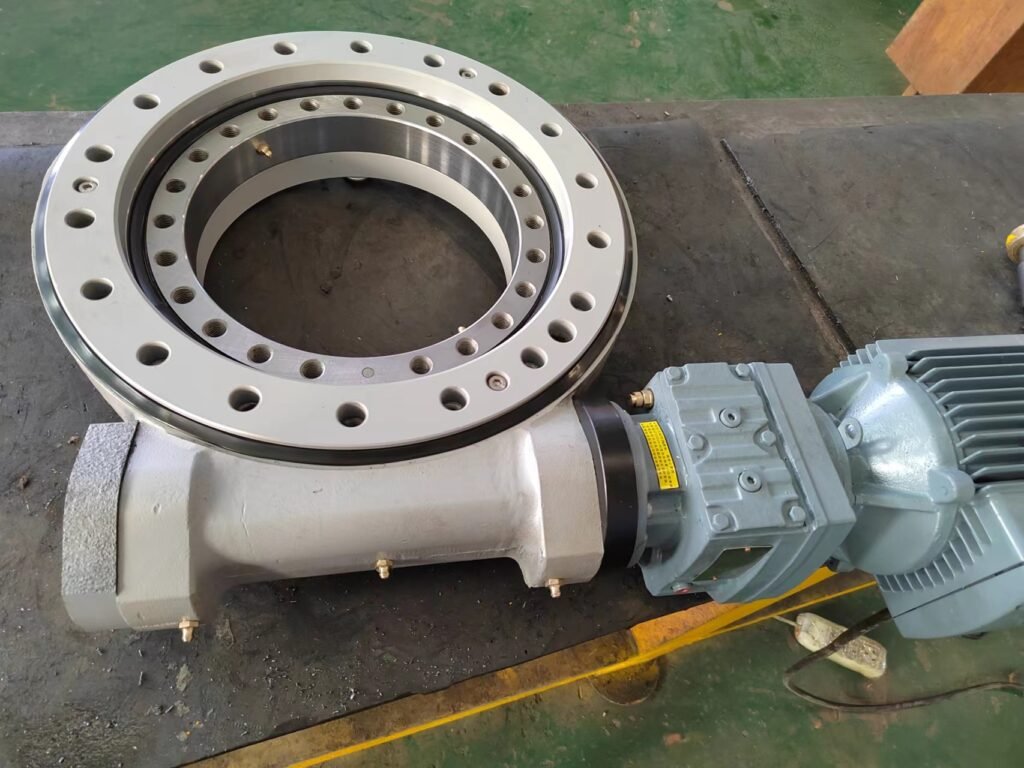

Our products
Types and Applicaitons
Based on the mounting method,slewing drive can be divided horizontal and vertical types.Based on strucuture,the slewing drive can be divided into single worm and double worm drive.
Customer can choose the most suitable products based on their needs.
Slewing drives,as intergral products, are used in solar power generation tracking system,heavy duty flatbed truck,crane,lorry crane,mobile crane,overhead working truck,ship crane,gantry crane,small wind power station,spance communications,satellite receiver and other fields.
| Item | Speed reduction ratio | precision grade | output torque | tilting torque | holding torque | axial static load | bending rigidity | torsion rigidity | dynamic self-locking | weight |
| SX-05 | 60:1 | ＜0.05° | 750Nm | 6000Nm | 2500Nm | 6000N | ≥650Nm/mrad | ≥400Nm/mrad | ≥400Nm | 28.5kg |
| SX-09V | 62:1 | ＜0.1° | 9.5KNm | 33KNm | 40KNm | 338KN | 135KN | 81KN | 71KN | 49kg |
| SX-12Z | 78:1 | ＜0.08° | 7.5KNm | 54.3KNm | 43KNm | 475KN | 190KN | 114KN | 101KN | 96kg |
Note:For other slewing drive design,please contact us.
