Luoyang Jiayu Bearing Design and develop company with rich experience in bearing ,consolidating strengths, optimizing existing equipment and processes, and exploring new technologies, the company specializes in developing non-standard and customized ultra-precision bearings for high-end industries. The bearings can achieve precision levels of P4, P2, and P2A grades, including:high precision angular contact ball bearing,high precision cylindrical roller bearing,high precision tapered roller bearing and thin section bearing.
Bearing design and processing

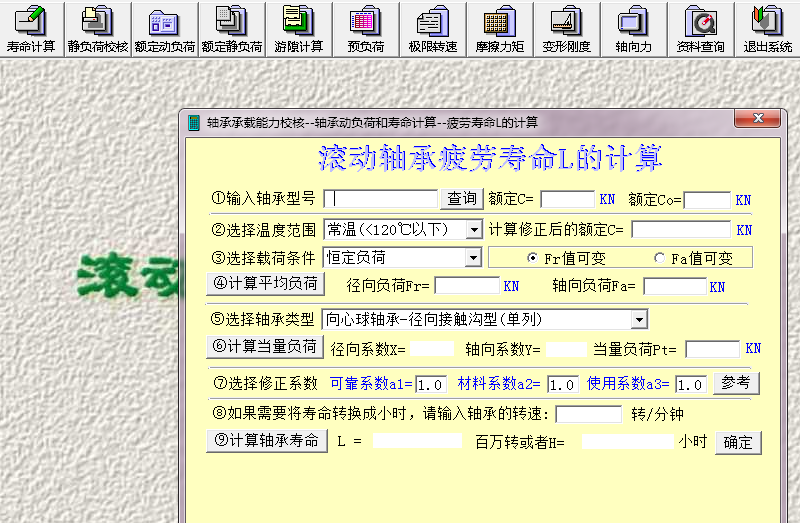

During the bearing development ,we communicate with customers about load,speed,space and lubrication conditions,which makes the bearing is more suitable.

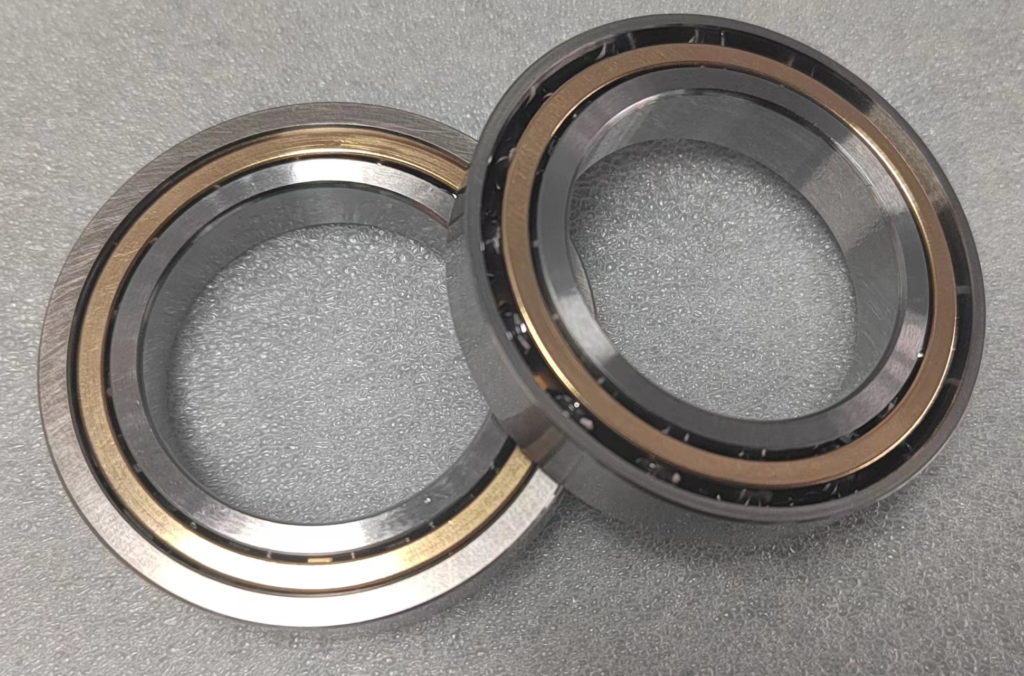

High precision angular contact ball bearing
Precision angular contact ball bearing developed by our company are mainly used in
precision machine tools
high speed wire rod mill
ball screws
Precision rotary tables
Turbines
Robotics
Electronic equipment
Due to bearings withstanding axial loads, radial loads, or combined loads, its contact angles include 15°, 25°, 30°, 40°, and 60°, among others. Additionally, since radial loads induce axial forces, we can supply matched pair bearings (DB/DF/DT), triple sets, quadruple sets, or universal matched bearings to meet specific application requirements.
The standard material for precision angular contact ball bearings is bearing steel GCr15 (AISI 51200). For corrosion-resistant applications, we offer stainless steel bearings made of 9Cr18 or 9Cr18Mo (AISI 440C). For high-temperature and high-speed applications, we utilize M50 and X30 steel. The rolling elements can be matched with bearing steel, stainless steel balls, ceramic (Si3N4/ZrO2) balls, or high-temperature steel balls.
Cage (Retainer) Options:
- Roller-guided polyamide (nylon) cages
- Outer ring-guided phenolic resin laminated fabric cages
- Outer ring-guided PEEK (polyetheretherketone) cages
- Bronze or steel cages
By using ultra-clean bearing steel combined with optimized heat treatment and cryogenic processing, this series of bearings achieves significantly enhanced fatigue life.
