RAU Slim crossed roller bearing

In the RAU slim crossed roller bearing, the rollers travel on the V-shaped raceways ground into the inner and outer rings.Rollers are arranged perpendicular to each other so that one bearing can support loads and moments in any direction. Because of the integrated structure,RAU crossed roller bearing can be used in the area where either outer ring or inner ring need roration.

Features

1.Compact structure and lightweight

2.High rigid

3.Long life

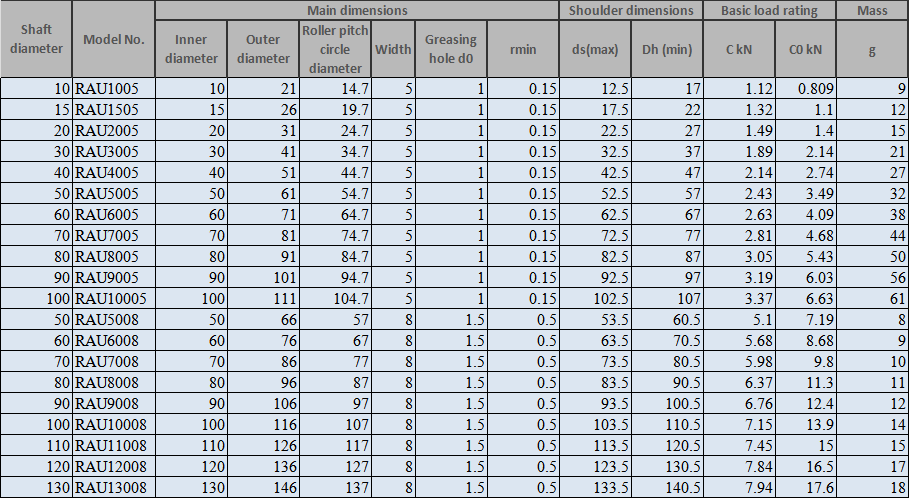

Dimension and accuracy

Shaft diameter	Model No.	Main dimensions						Shoulder dimensions		Basic load rating		Mass
Shaft diameter	Model No.	Inner diameter	Outer diameter	Roller pitch circle diameter	Width	Greasing hole d0	rmin	ds(max)	Dh (min)	C kN	C0 kN	g
10	RAU1005	10	21	14.7	5	1	0.15	12.5	17	1.12	0.809	9
15	RAU1505	15	26	19.7	5	1	0.15	17.5	22	1.32	1.1	12
20	RAU2005	20	31	24.7	5	1	0.15	22.5	27	1.49	1.4	15
30	RAU3005	30	41	34.7	5	1	0.15	32.5	37	1.89	2.14	21
40	RAU4005	40	51	44.7	5	1	0.15	42.5	47	2.14	2.74	27
50	RAU5005	50	61	54.7	5	1	0.15	52.5	57	2.43	3.49	32
60	RAU6005	60	71	64.7	5	1	0.15	62.5	67	2.63	4.09	38
70	RAU7005	70	81	74.7	5	1	0.15	72.5	77	2.81	4.68	44
80	RAU8005	80	91	84.7	5	1	0.15	82.5	87	3.05	5.43	50
90	RAU9005	90	101	94.7	5	1	0.15	92.5	97	3.19	6.03	56
100	RAU10005	100	111	104.7	5	1	0.15	102.5	107	3.37	6.63	61
50	RAU5008	50	66	57	8	1.5	0.5	53.5	60.5	5.1	7.19	8
60	RAU6008	60	76	67	8	1.5	0.5	63.5	70.5	5.68	8.68	9
70	RAU7008	70	86	77	8	1.5	0.5	73.5	80.5	5.98	9.8	10
80	RAU8008	80	96	87	8	1.5	0.5	83.5	90.5	6.37	11.3	11
90	RAU9008	90	106	97	8	1.5	0.5	93.5	100.5	6.76	12.4	12
100	RAU10008	100	116	107	8	1.5	0.5	103.5	110.5	7.15	13.9	14
110	RAU11008	110	126	117	8	1.5	0.5	113.5	120.5	7.45	15	15
120	RAU12008	120	136	127	8	1.5	0.5	123.5	130.5	7.84	16.5	17
130	RAU13008	130	146	137	8	1.5	0.5	133.5	140.5	7.94	17.6	18
